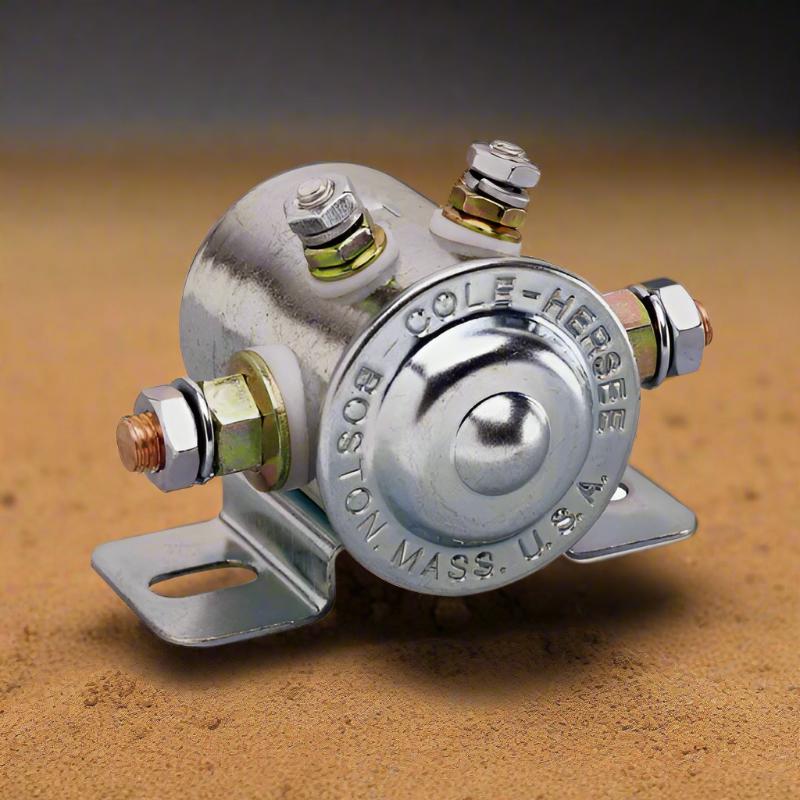

Cole Hersee 85A Solenoid - Intermittent

Marine 12V Intermittent Duty Solenoid SPST

4 stud, Insulated stud earth

Marine construction, clear protective coating finish

SPST Normally open (one circuit) OFF/ON

Copper Stud terminals 5/16″-24

Insulated Coil terminals 10-32

Plated steel housing, nuts & washers Inc.

Mounting holes 8mm x 15mm, 56mm CTC

Mount with brand cap facing DOWN

Int. ratings: 10 sec ON, 20 min OFF

• Voltage: 12V

• Amperage: 750A make, 100A break, 4.4 ohm

• Dimensions: H 60 x D 64 x W 84

• Configuration: SPST

• Modes: Intermittent Duty
