Open Barrel Splice Terminals

SJT1

Cable Size

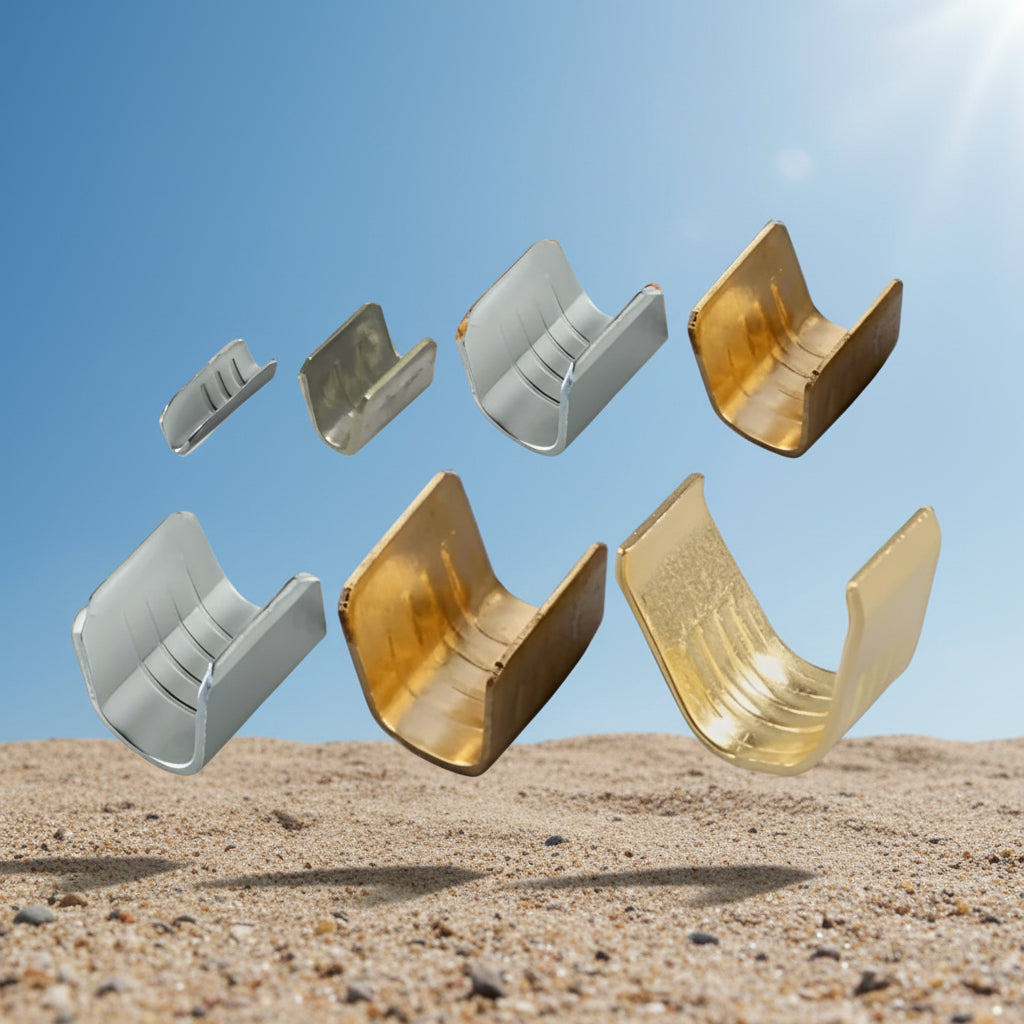

Assorted Brass Splice Terminals

Universal Brass Splicing Terminals with insulation support. Great in-line butt joint for up to 0.2 - 8.0mm² cables.

Jay-Dee Part # Prefix: SJT

Pack Qty: 25 (Ordered as 1)

Brand: Jay-Dee

SJT1

(Suitable for very small electronic cable)

Material: Brass

Finish: Electro-Tinned

Thickness: 0.3mm

Length: 4.7mm

Width: 2.0mm

Wire Size: 0.2-0.3mm²


SJT2

(Suitable for joining 2mm to 3mm Thinwall Auto cable)

Material: Brass

Finish: Electro-Tinned

Thickness: 0.25mm

Length: 3.1mm

Width: 2.2mm

Height: 2.6mm

Wire Size: 0.5-1.0mm²


SJT3

(Suitable for joining 3mm Auto cable)

Material: Brass

Finish: Electro-Tinned

Thickness: 0.4mm

Length: 5.0mm

Width: 3.8mm

Wire Size: 1.0-1.5mm²

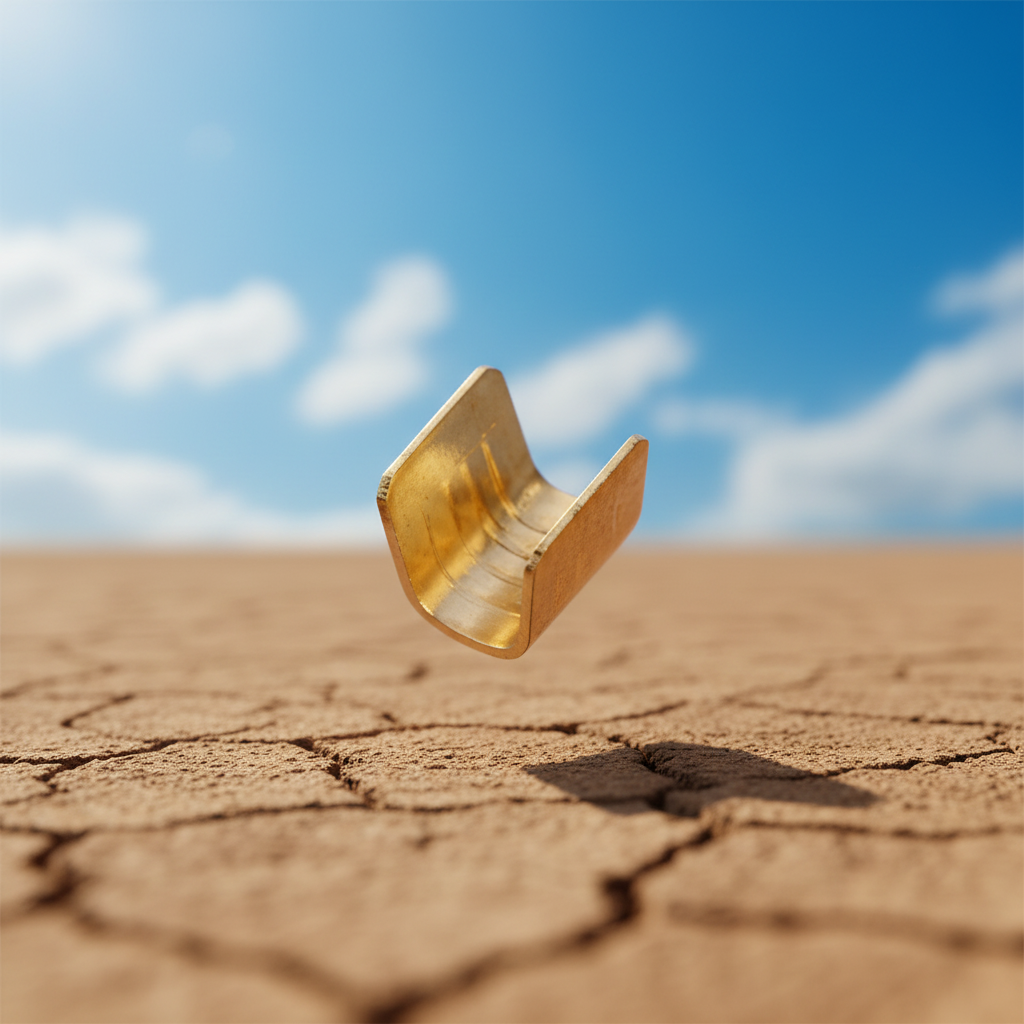

SJT4

(Suitable for joining 4mm Auto cable)

Material: Brass

Finish: Natural

Thickness: 0.4mm

Length: 5.1mm

Width: 4.2mm

Wire Size: 1.0-2.5mm²


SJT5

(Suitable for joining 5mm Auto cable)

Material: Brass

Finish: Electro-Tinned

Thickness: 0.4mm

Length: 6.0mm

Width: 5.2mm

Wire Size: 2.0-3.3mm²

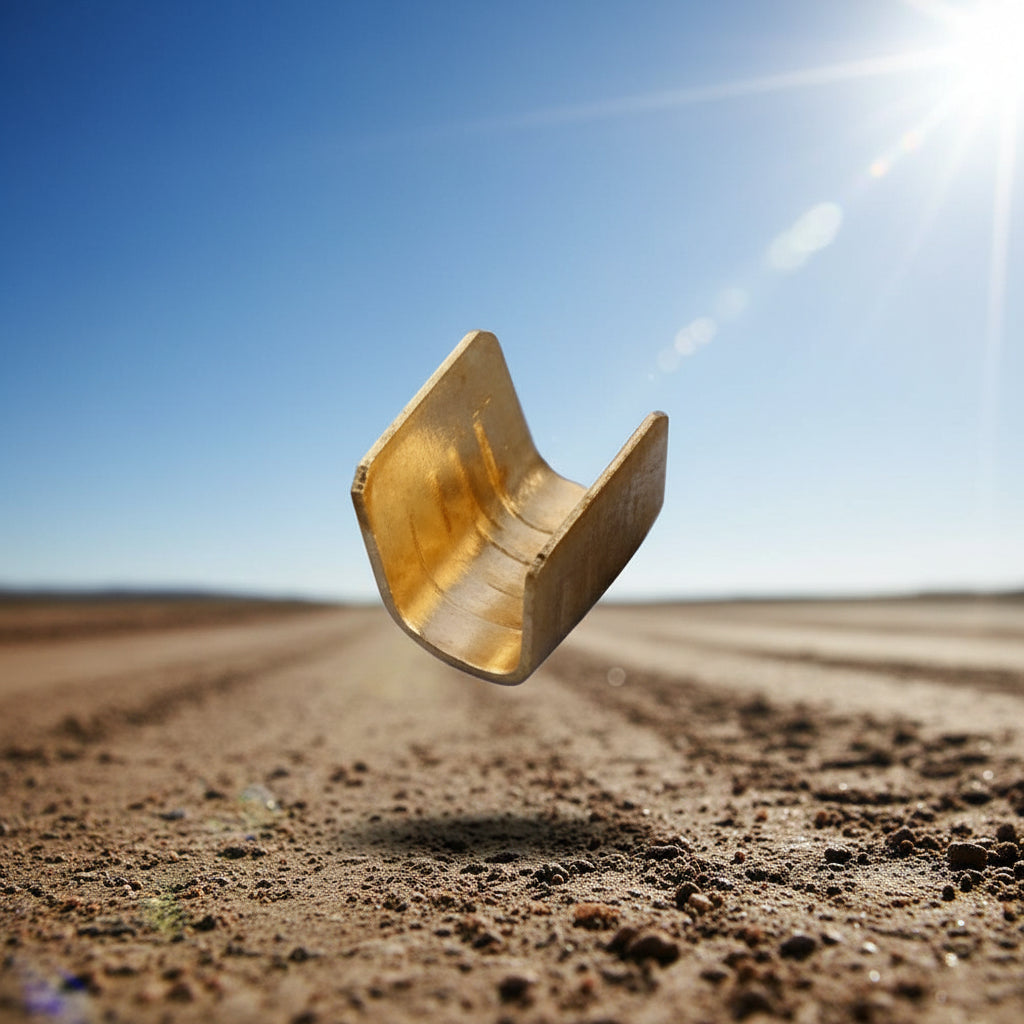

SJT6

(Suitable for joining 6mm Auto cable)

Material: Brass

Finish: Natural

Thickness: 0.4mm

Length: 7.0mm

Width: 5.6mm

Wire Size: 4.0-6.0mm²

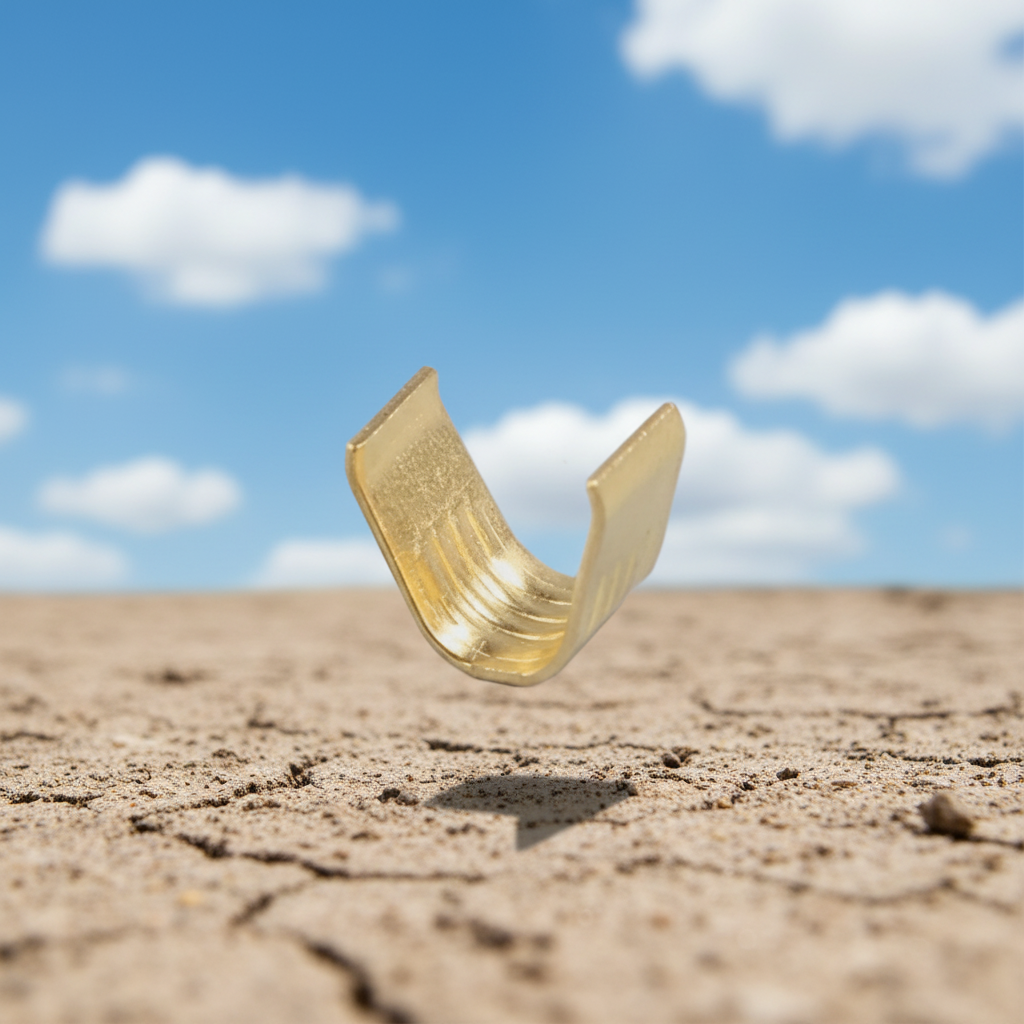

SJT8

(Suitable for joining 8B&S Auto cable)

Material: Brass

Finish: Natural

Thickness: 0.5mm

Length: 7.0mm

Width: 5.6mm

Wire Size: 6.0-8.0mm²

Recommended Crimping Tools:

JD61or JD62 suits SJT1 - SJT4

IWS-510C suits SJT5 - SJT8
