Part #: H430B-1
Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

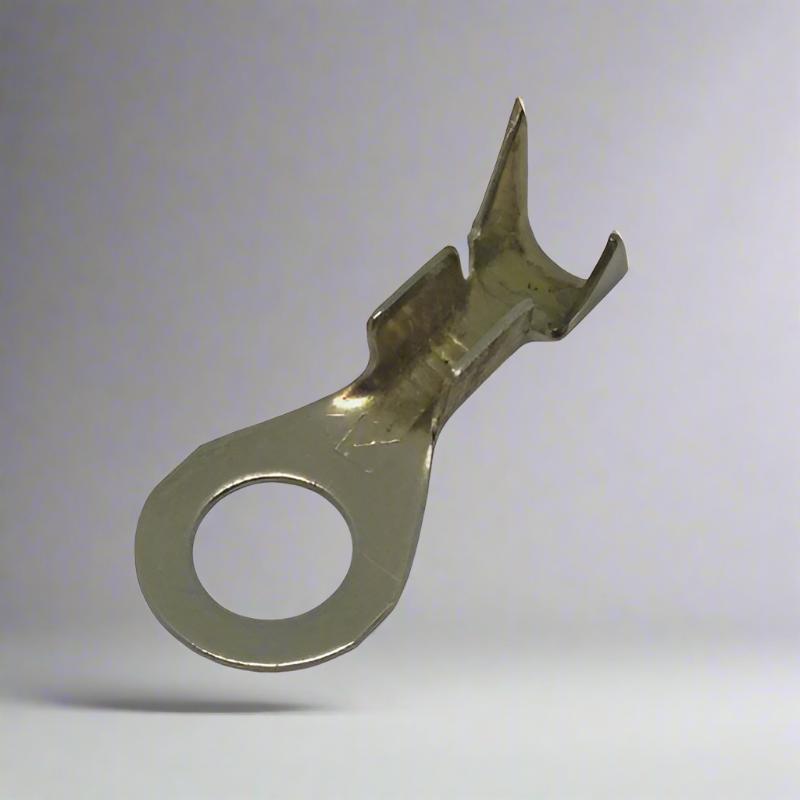

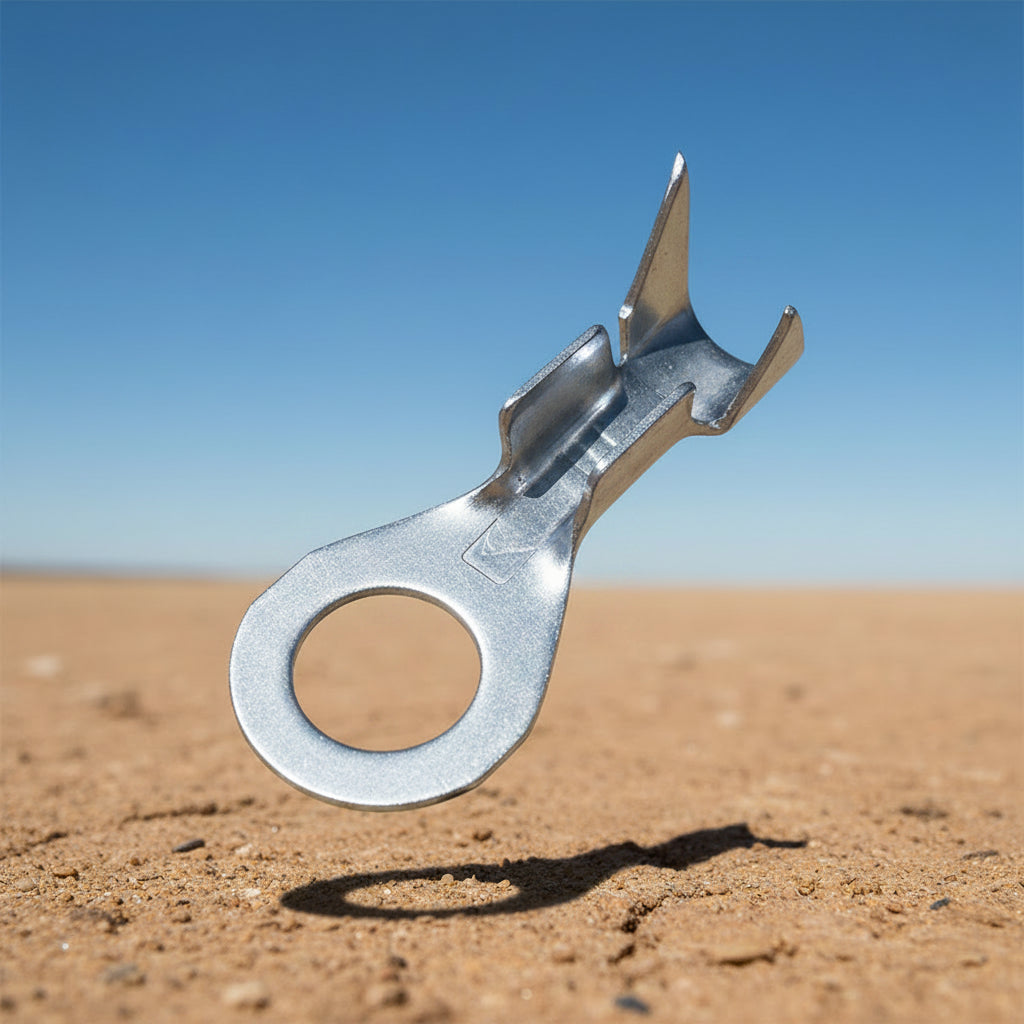

Open Barrel 5.3mm Hi Temp Eye Terminal

Name: Open Barrel 5.3mm Hi Temp Eye Terminal
Brand: Utilux
SKU: H430B-1
Price: 0.26 AUD
Availability: InStock

$0.26

Pack Qty: Multiples of 25

Scroll down page for more product details. . .

Description

Roll-in crimp 5.3mm Nickel/Silver eye terminal used in High Temp applications up to 200 degrees Celsius.

Jay-Dee Part #: H430B

Pack Qty: 25

Brand: Jay-Dee

Material: Brass

Finish: Nickel-Silver

Thickness: 0.55mm

Length: 21.40mm

Width: 9.70mm

Diameter: 5.30mm

Wire Size: 0.5-2.5mm²

Recommended Crimping Tools:

IWS-1424AB

JD61

JD62

HT4560

Reviews

Cable Type	Nominal Area	Outside Diameter	Amp Rating @ 30°C
8B&S Single Core	7.71mm²	5.5mm	74A
6B&S Single Core	13.50mm²	7.2mm	103A
4B&S Single Core	20.26mm²	8.3mm	135A
3B&S Single Core	26.45mm²	10.2mm	168A
2B&S Single Core	32.07mm²	11.3mm	188A
1B&S Single Core	39.55mm²	12.1mm	210A
0B&S Single Core	49.00mm²	12.7mm	246A
00B&S Single Core	64.15mm²	14.5mm	292A
000B&S Single Core	83.19mm²	16.4mm	335A
8B&S Twin Core	7.71mm²	7.1mm x 12.5mm	59.2A
6B&S Twin Core	13.50mm²	8.8mm x 16.0mm	82.4A
4B&S Twin Core	20.26mm²	10.3mm x 18.6mm	108A
2B&S Twin Core	32.07mm²	13.4mm x 24.6mm	150.4A
2B&S Welding	35mm²	13.1mm	155A
0B&S Welding	50mm²	14.9mm	185A
00B&S Welding	70mm²	17.0mm	240A
