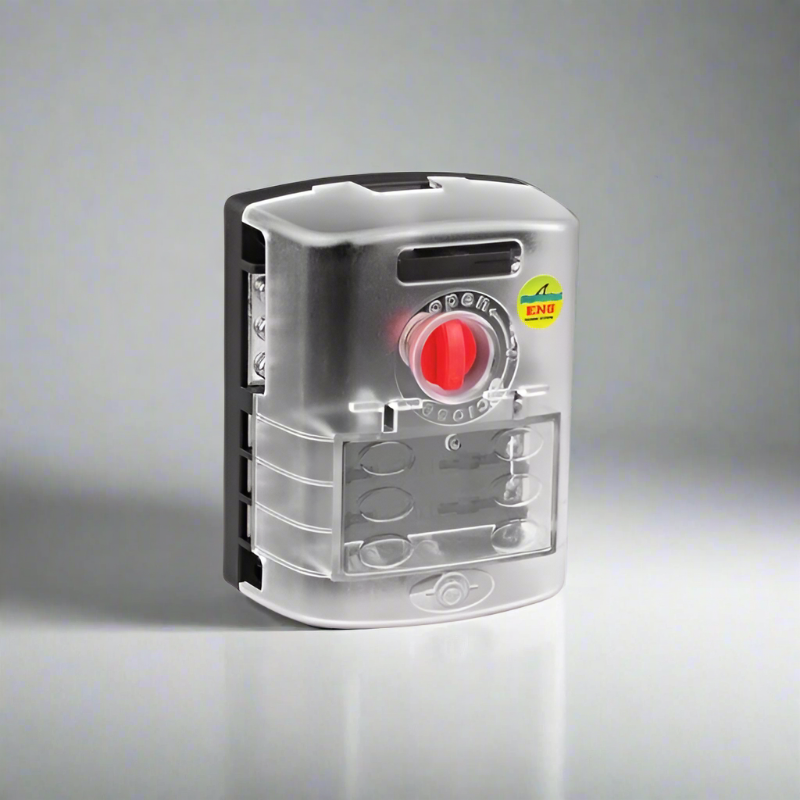

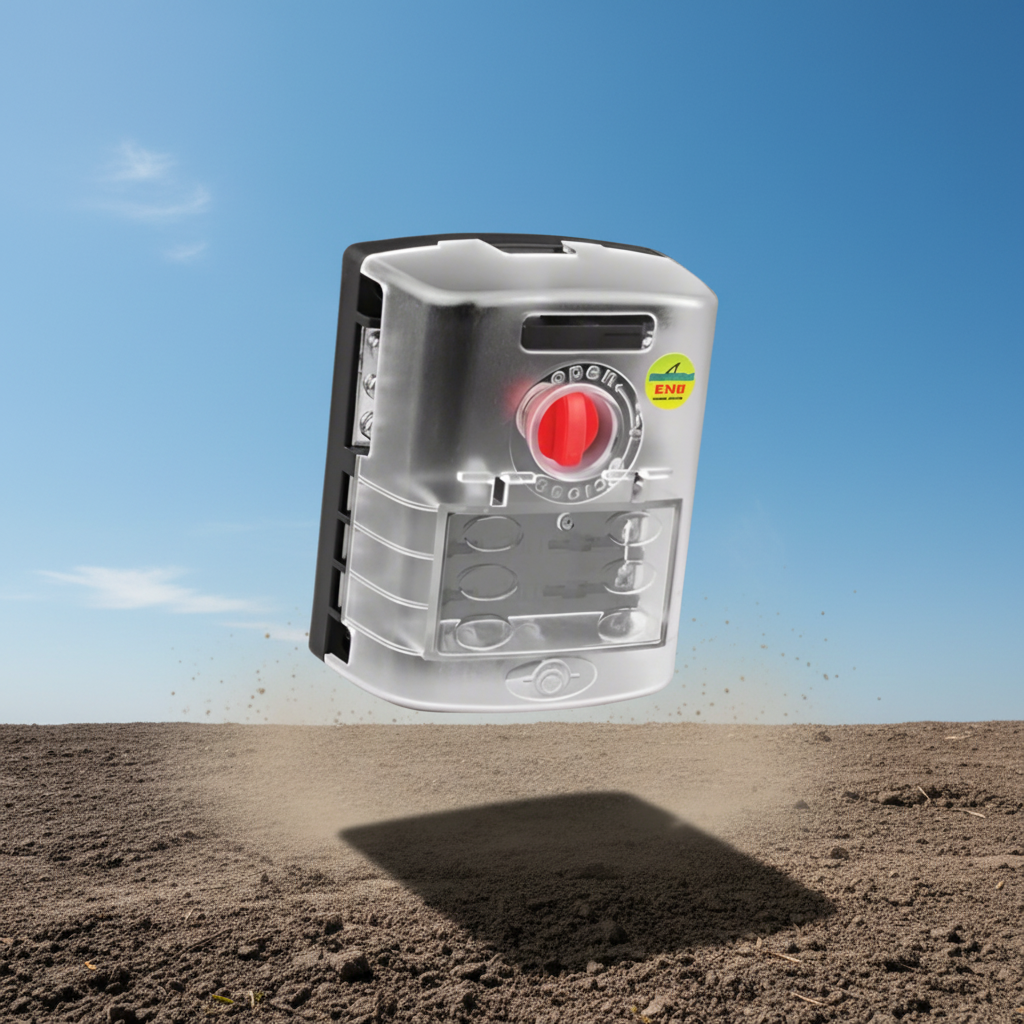

Designed to eliminate extensive and messy wiring this fuse box is ideal for applications running numerous circuits and accessories.
Neat, professional appearance
Dual power inputs
Inbuilt common earth returns
For use with standard AF blade fuses & AF plug in circuit breakers
Lockable transparent cover
86 adhesive labels included
Part #: N54446
Pack Qty: 1
Brand: Narva 54446
Voltage: Max 32V
Amp Rating: Max 120A total / Max 30A per circuit @ 12V
Terminals: Power Out 6 x M4 Screw / Power In 2 x M5 Stud / Earth 1 x M5 Stud
Mounting: M5 Screw x 4
Cable Type | Nominal Area | Outside Diameter | Amp Rating @ 30°C |
---|---|---|---|
8B&S Single Core | 7.71mm² | 5.5mm | 74A |
6B&S Single Core | 13.50mm² | 7.2mm | 103A |
4B&S Single Core | 20.26mm² | 8.3mm | 135A |
3B&S Single Core | 26.45mm² | 10.2mm | 168A |
2B&S Single Core | 32.07mm² | 11.3mm | 188A |
1B&S Single Core | 39.55mm² | 12.1mm | 210A |
0B&S Single Core | 49.00mm² | 12.7mm | 246A |
00B&S Single Core | 64.15mm² | 14.5mm | 292A |
000B&S Single Core | 83.19mm² | 16.4mm | 335A |
8B&S Twin Core | 7.71mm² | 7.1mm x 12.5mm | 59.2A |
6B&S Twin Core | 13.50mm² | 8.8mm x 16.0mm | 82.4A |
4B&S Twin Core | 20.26mm² | 10.3mm x 18.6mm | 108A |
2B&S Twin Core | 32.07mm² | 13.4mm x 24.6mm | 150.4A |
2B&S Welding | 35mm² | 13.1mm | 155A |
0B&S Welding | 50mm² | 14.9mm | 185A |
00B&S Welding | 70mm² | 17.0mm | 240A |
