Part #: BLRA50-8
Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

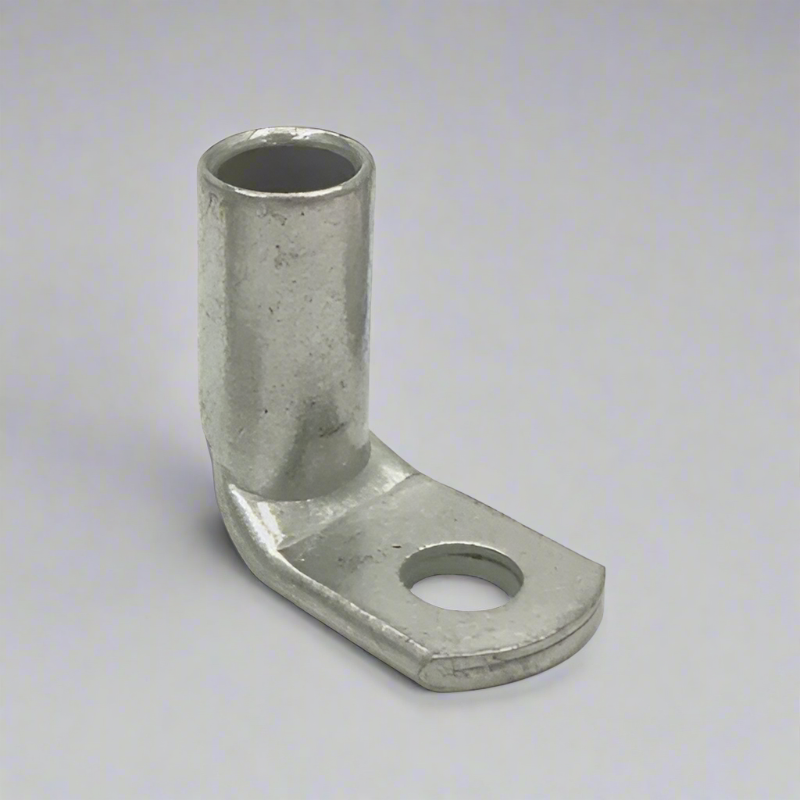

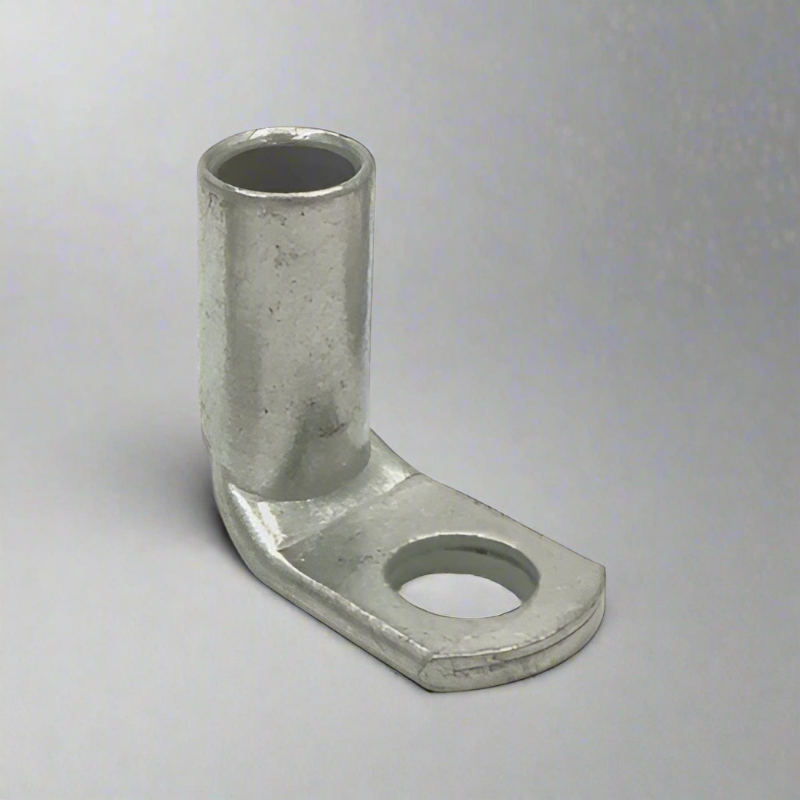

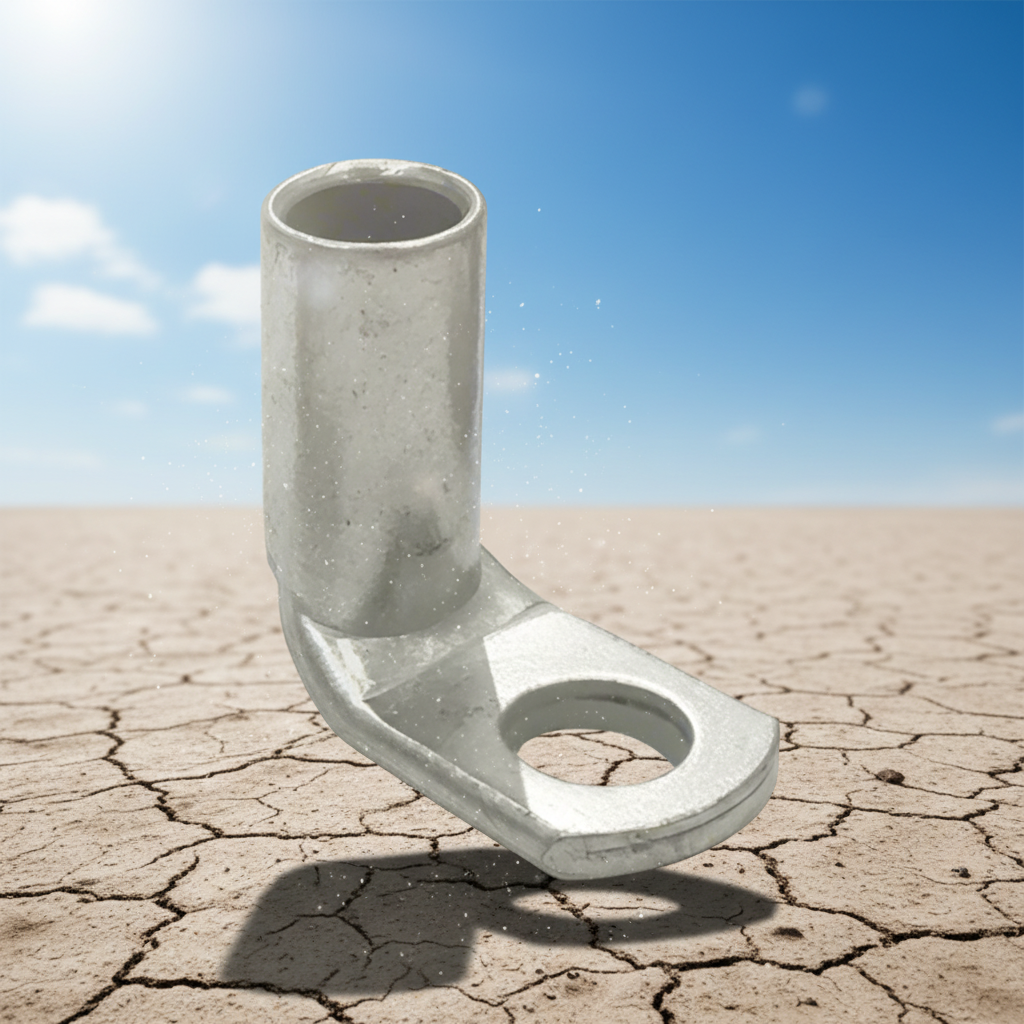

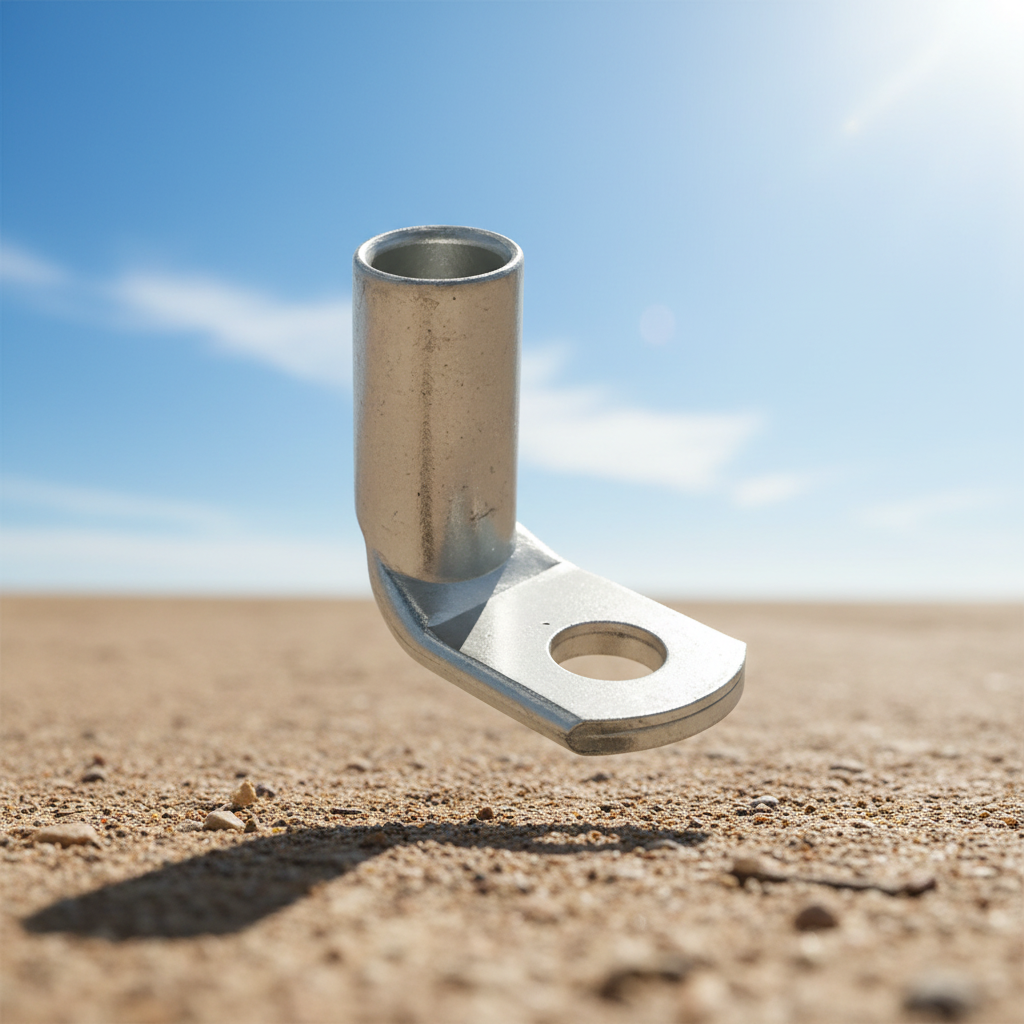

Battery Lugs 90° - 50mm²

Name: Battery Lugs 90° - 50mm²
Brand: Carroll
SKU: BLRA50-8
Price: 4.65 AUD
Availability: InStock

$4.65

Please make your selections via the Blue options below

Scroll down for more information and specifications...

Description

Fully annealed 99.95% pure electrolytic copper

Jay-Dee Part #: BLRA50--

Pack Qty: 1

Brand: Carroll

Cross Section: 50mm²

Auto Size: 0-1B&S

Gauge: 0-1AWG

Stud Size: 8mm or 10mm

Recommended Crimping Tools:

20A

20B

Reviews

Cable Type	Nominal Area	Outside Diameter	Amp Rating @ 30°C
8B&S Single Core	7.71mm²	5.5mm	74A
6B&S Single Core	13.50mm²	7.2mm	103A
4B&S Single Core	20.26mm²	8.3mm	135A
3B&S Single Core	26.45mm²	10.2mm	168A
2B&S Single Core	32.07mm²	11.3mm	188A
1B&S Single Core	39.55mm²	12.1mm	210A
0B&S Single Core	49.00mm²	12.7mm	246A
00B&S Single Core	64.15mm²	14.5mm	292A
000B&S Single Core	83.19mm²	16.4mm	335A
8B&S Twin Core	7.71mm²	7.1mm x 12.5mm	59.2A
6B&S Twin Core	13.50mm²	8.8mm x 16.0mm	82.4A
4B&S Twin Core	20.26mm²	10.3mm x 18.6mm	108A
2B&S Twin Core	32.07mm²	13.4mm x 24.6mm	150.4A
2B&S Welding	35mm²	13.1mm	155A
0B&S Welding	50mm²	14.9mm	185A
00B&S Welding	70mm²	17.0mm	240A
