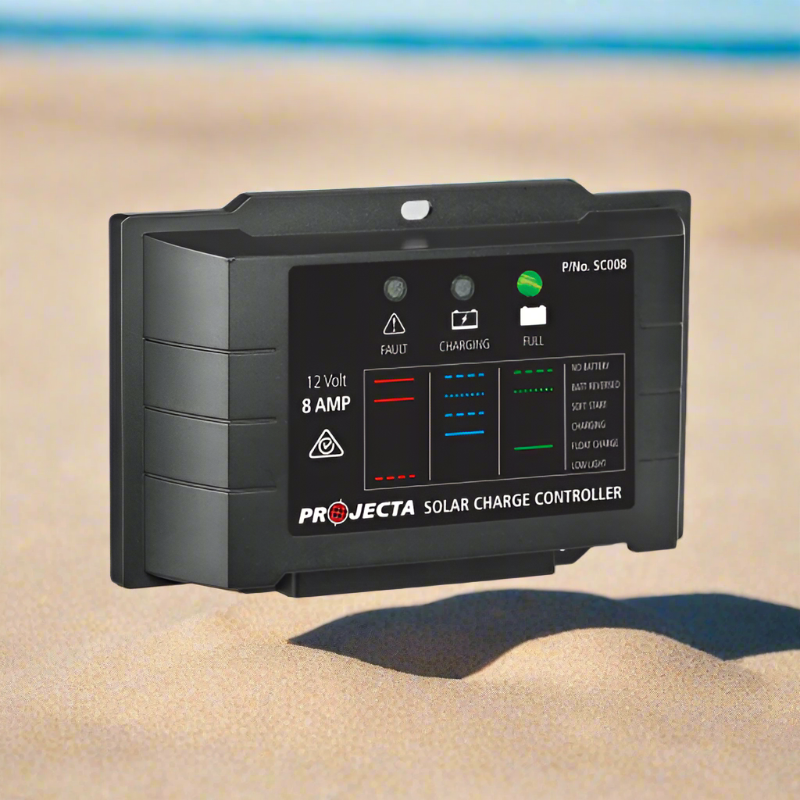

SC008

AUTOMATIC 12V 8A 4 STAGE SOLAR CHARGE CONTROLLER

2 items left

AUTOMATIC 12V 8A 4 STAGE SOLAR CHARGE CONTROLLER

Safe to leave permanently connected, these compact solar controllers feature advanced 4 stage charging making them idea for both starting and deep cycle batteries.

L.E.D charge Indicator
Displays quick reference to charge status of the battery

Sealed electronics
Potted circuit board and plated terminals protect controller from the elements

Ease of connection
Plated screw termination and quick reference label

Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM or Gel



Part #: SC008

Input: 12V

Max Input: 25 VDC/8A

Max Charge: 8A

Max Panel Size: 96W

Battery: 12V

Charge Control:

4 Stage Charging: 12V

Bulk: 14.0V

Absorption - Gel: 14.1V

Absorption - AGM: 14.4V

Absorption - Wet: 14.7V

Absorption - Calcium: 14.9V

Equalisation: 15.5V

Float: 13.6V



Approval: EMC

IP Rating: IP65
