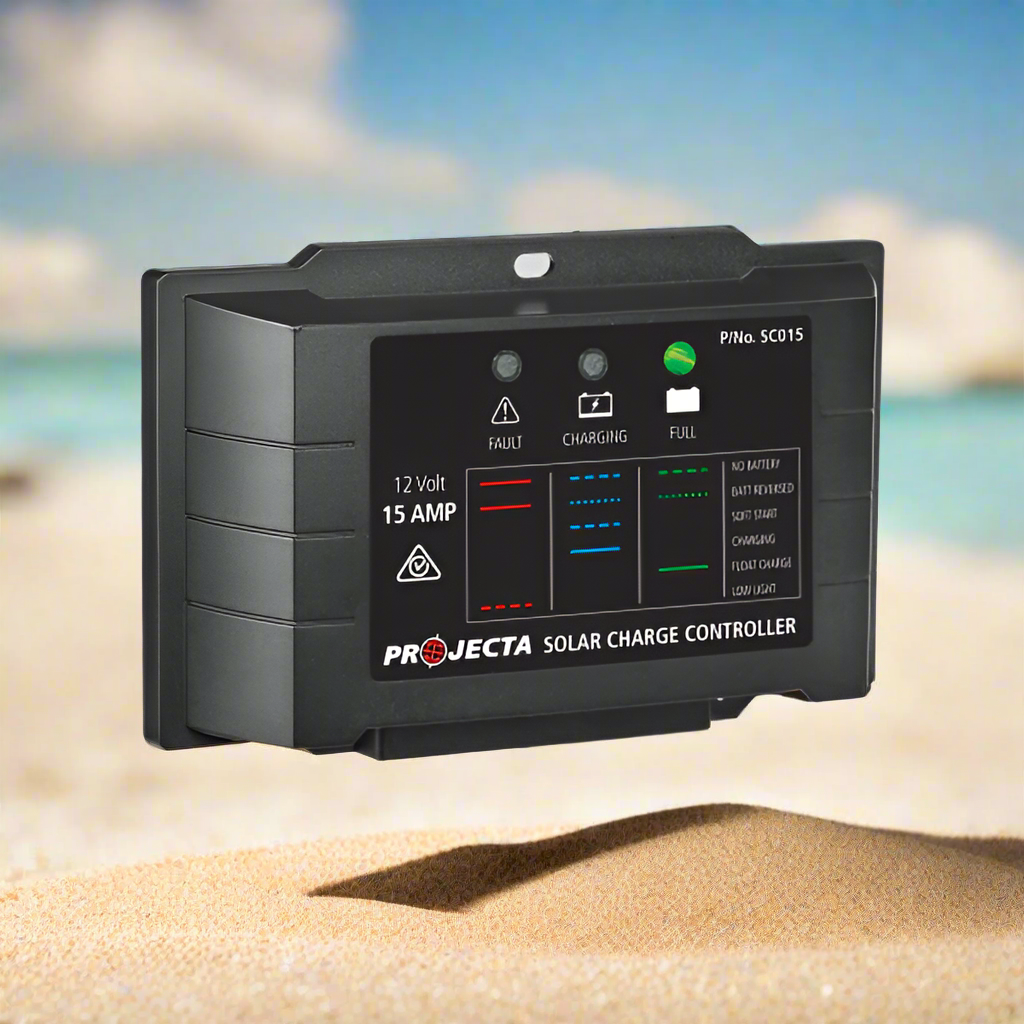

Solar Controller 12V 15A

SC015

2 items left

AUTOMATIC 12V 15A 4 STAGE SOLAR CHARGE CONTROLLER

Safe to leave permanently connected, these compact solar controllers feature advanced 4 stage charging making them idea for both starting and deep cycle batteries.

L.E.D charge Indicator
Displays quick reference to charge status of the battery

Sealed electronics
Potted circuit board and plated terminals protect controller from the elements

Ease of connection
Plated screw termination and quick reference label

Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM or Gel



Part #: SC015

Input: 12V

Max Input: 25 VDC/15A

Max Charge: 15A

Max Panel Size: 180W

Battery: 12V

Charge Control:

4 Stage Charging: 12V

Bulk: 14.0V

Absorption - Gel: 14.1V

Absorption - AGM: 14.4V

Absorption - Wet: 14.7V

Absorption - Calcium: 14.9V

Equalisation: 15.5V

Float: 13.6V



Approval: EMC

IP Rating: IP65
