070SST

AMP Super Seal Terminals


Description



TE Connectivity SUPERSEAL Terminals

Developed to meet the constantly increasing needs and requirements for safety and reliability in the electrical connection field, these connectors fulfill all the requirements prescribed by the various automotive and industrial standards. Typical applications include various automotive sensor devices, oil pressure senders, water temperature monitoring or any application requiring waterproof protection to IP67.

Sturdy and reliable contacts
Double contact spring design
Secondary lock ensures correct and complete insertion of the contact
Silicone rubber seals

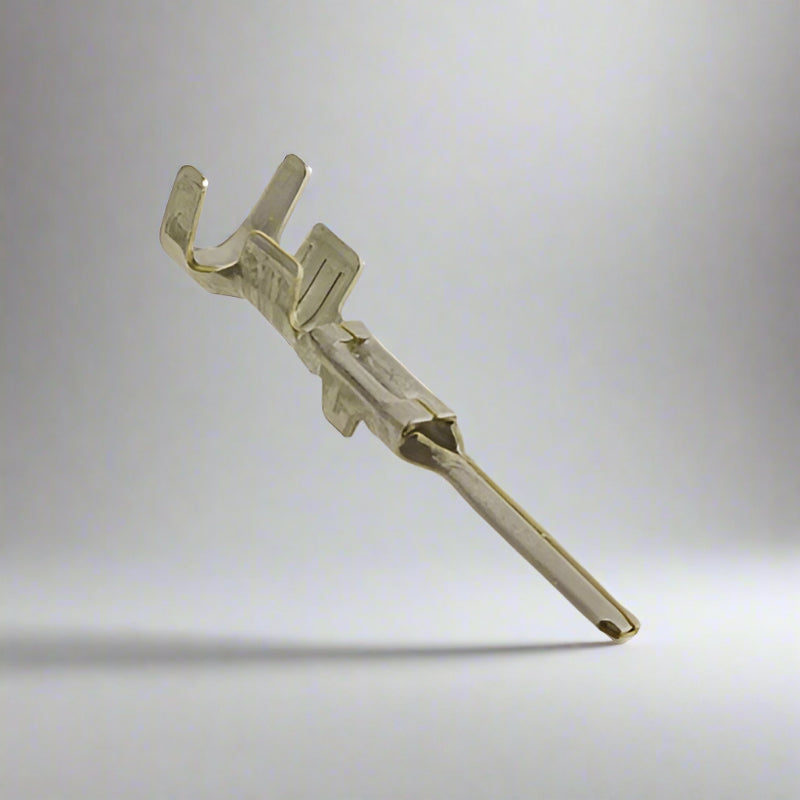

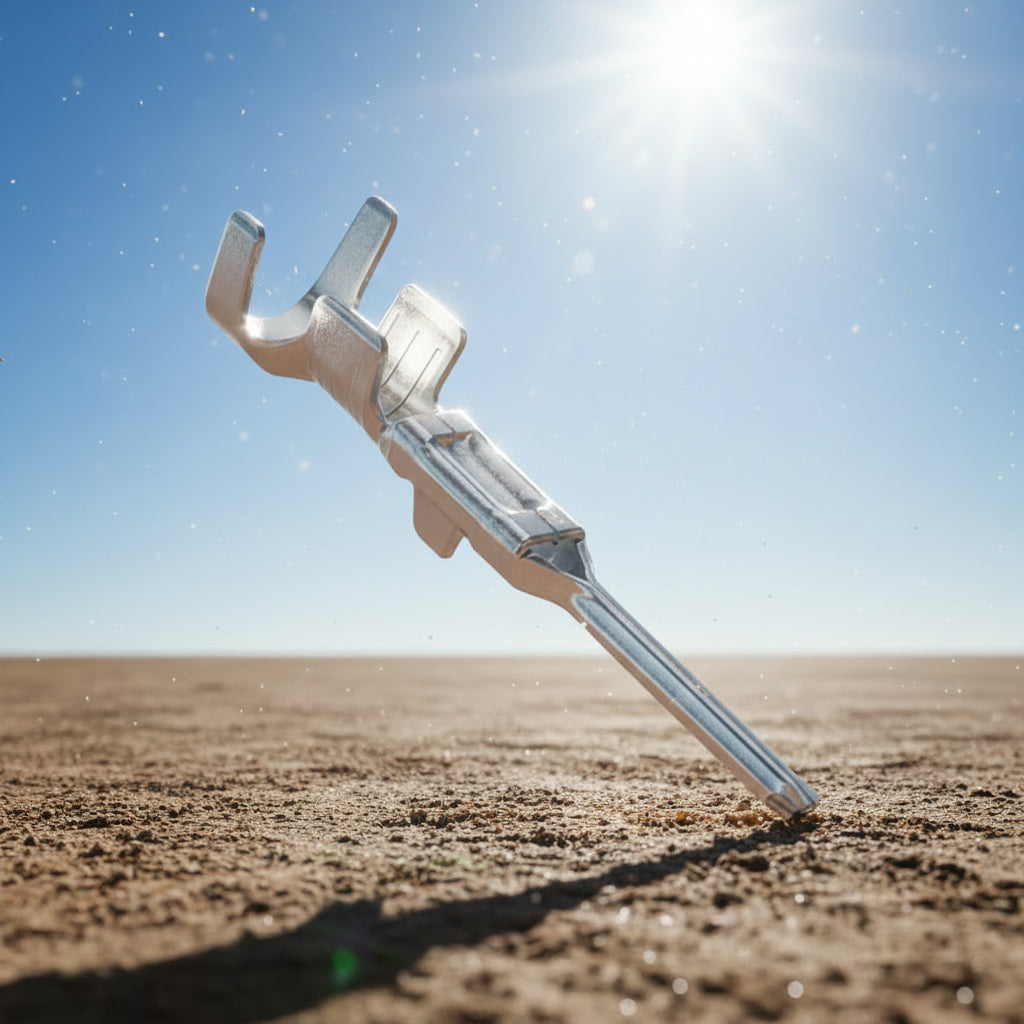

Male Terminal #: 070SST

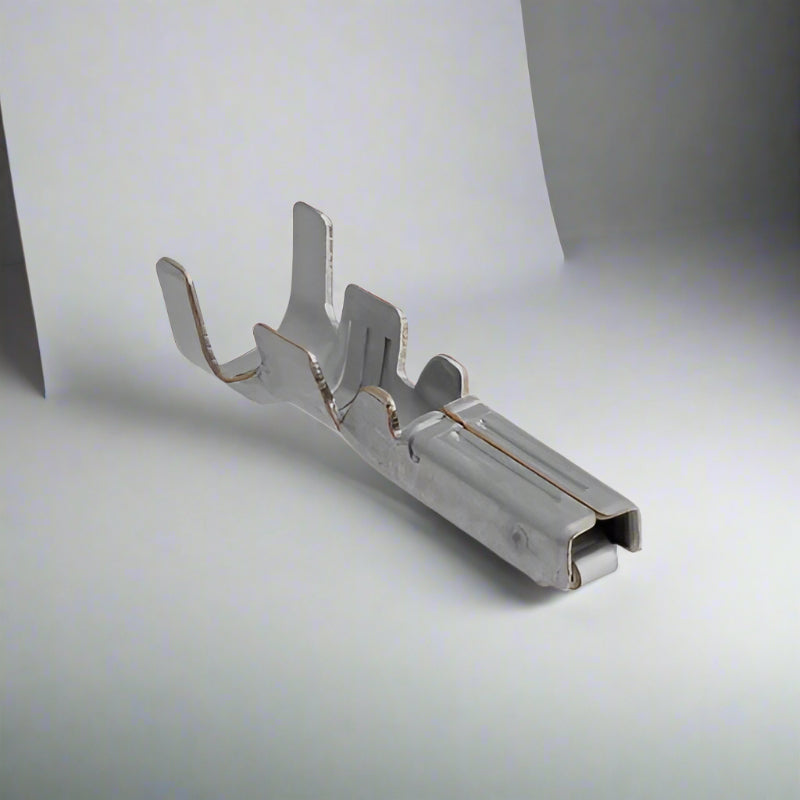

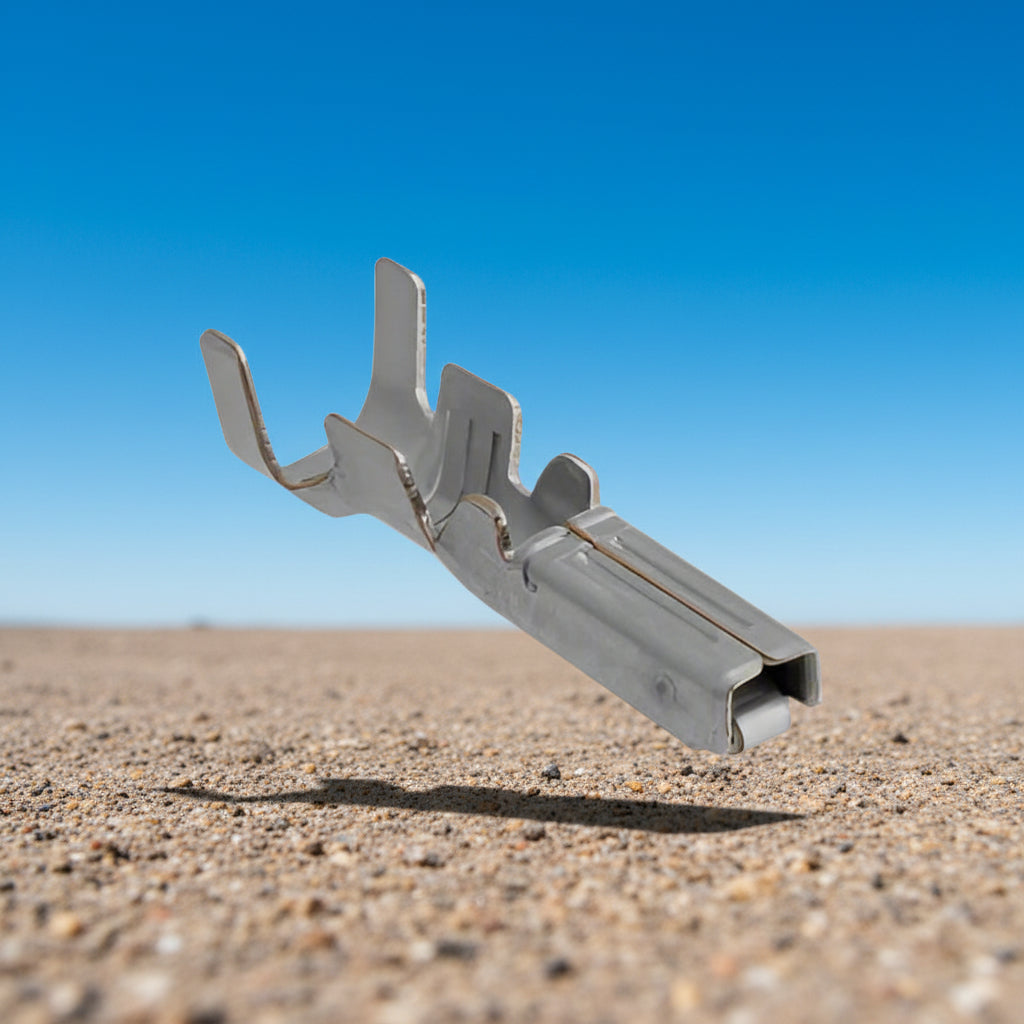

Female Terminal #: 070SSR

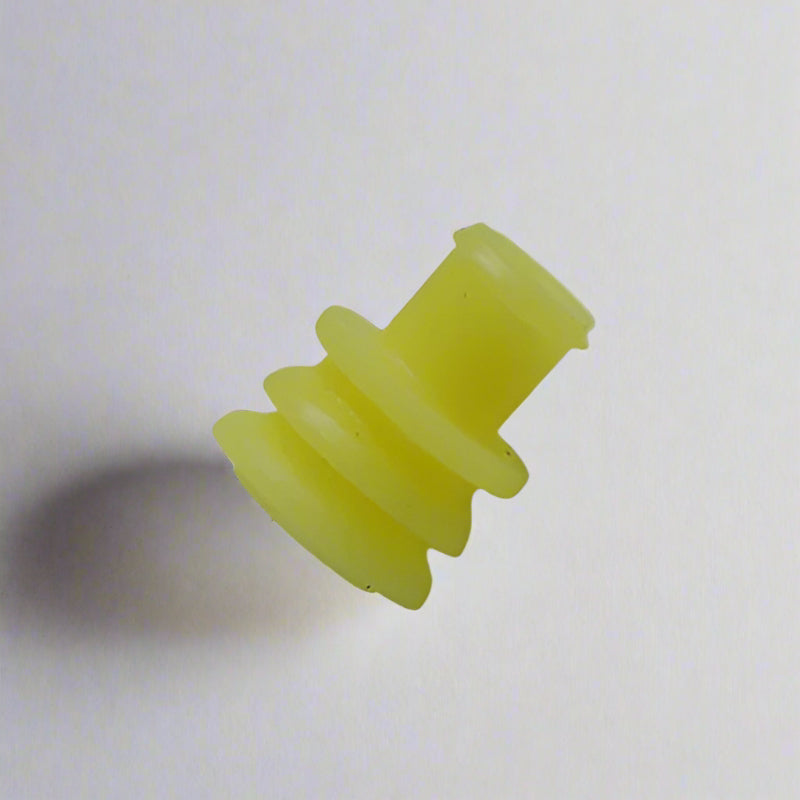

Seal #: 070S



Pack Size: 25



Specifications


Rating 60 Vdc 14A max.
Crimp material:
- Tab Tin plated brass
- Receptacle Tin plated phosphor bronze
Contact resistance 30m Ω max.
Wire size range: 1.0 - 1.5 mm2
Insulation Material Polyamide 6.6 glass filled
Temperature rating -40° to +125°C


Applications



TE Connectivity SUPERSEAL Connectors



Tooling



Crimping:WHPT-18







 Extraction:P2SET
