AMP "MATE-N-LOCK" Terminals (25 Pack)

Universal "MATE-N-LOK" connector terminals

General wire to wire connections using AMP "MATE-N-LOCK" connectors

• Product Info
• Specifications
• Accessories & Tooling

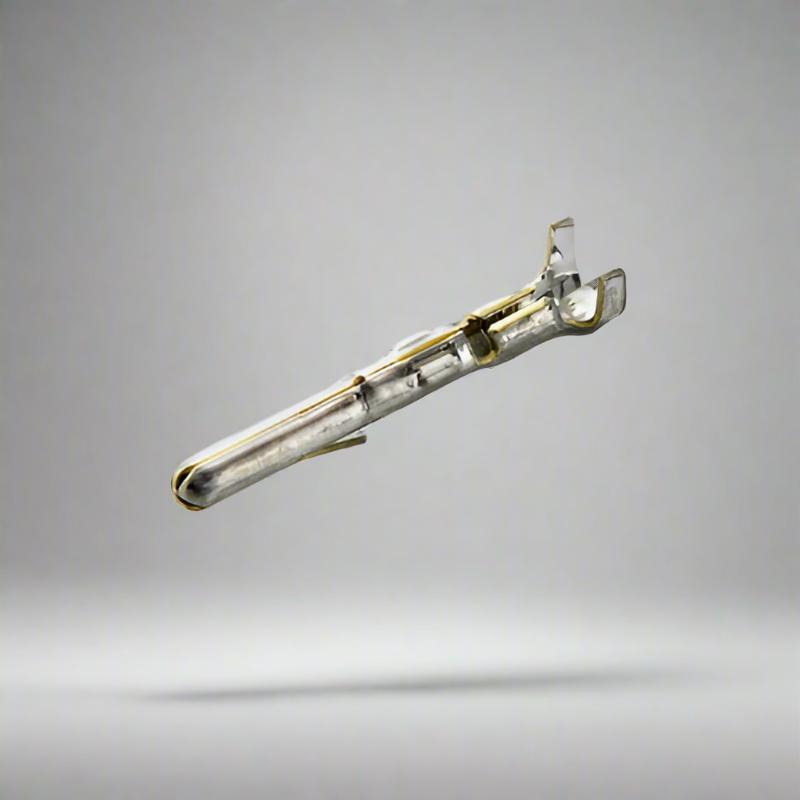

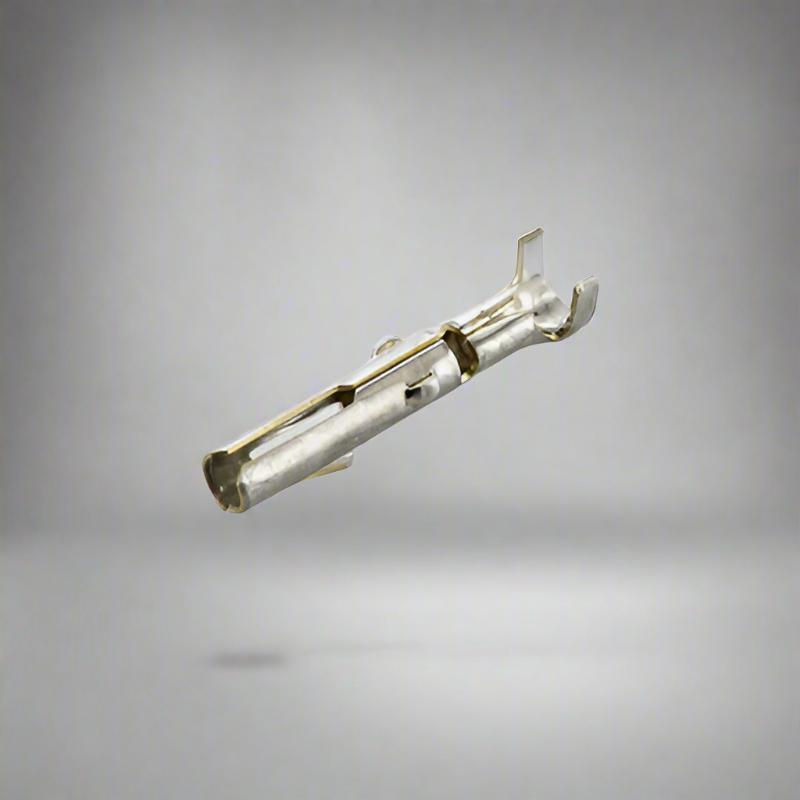

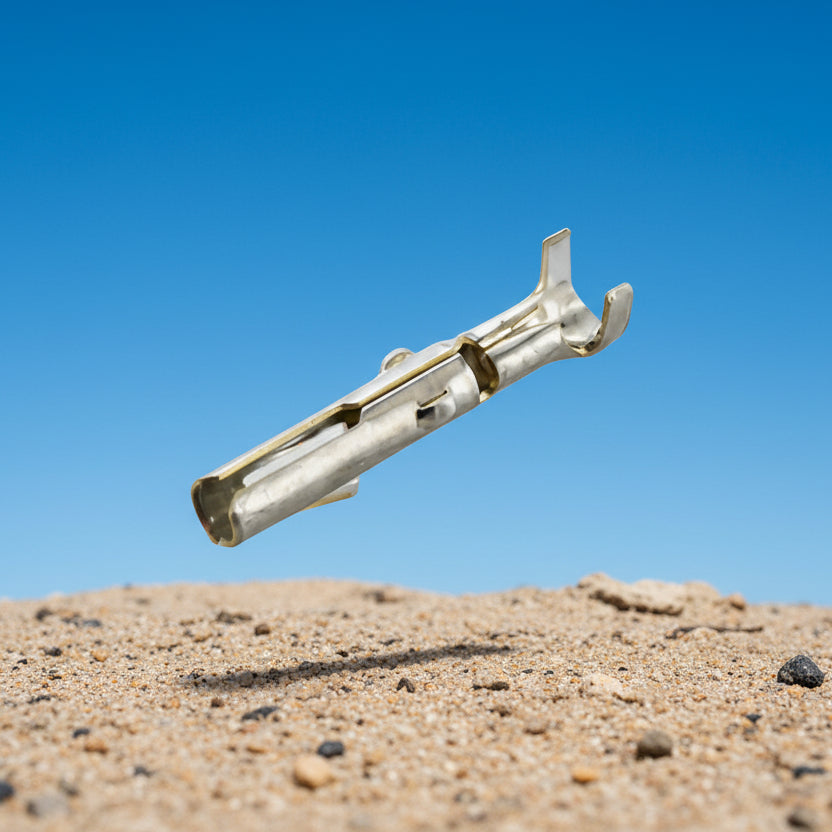

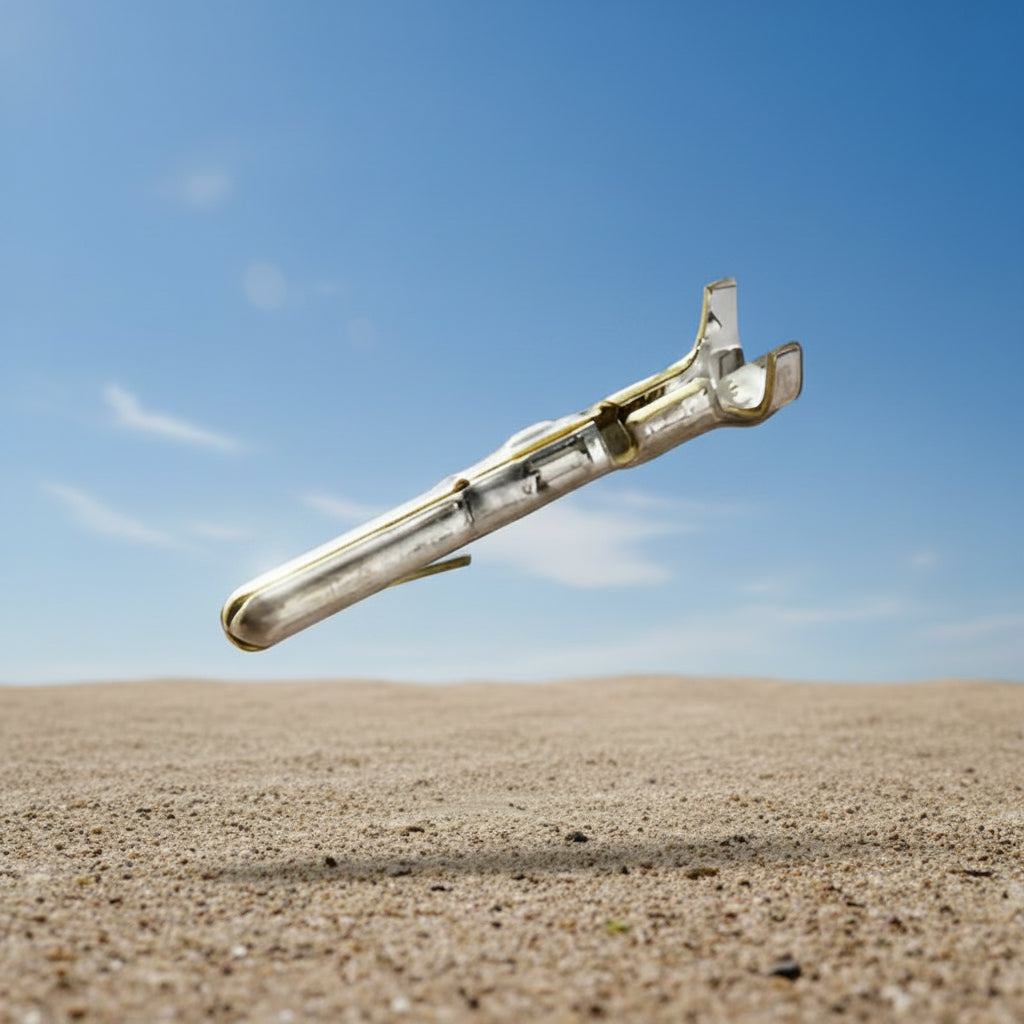

• Jay-Dee Part #:  JD163304 (Female) or JD163305 (Male)

  Pack Qty: 25 (Ordered as 1)

  Brand: MP



• Voltage Rating: 250VAC/VDC

  Current Rating: 13 amps

  Operating Temperature: -25°C to 105°C

  Contact Material: Brass

  Contact Plating: Tin

  Wire Size: 17-20 AWG

  Dimensions:

  Male: L20.40mm x 2.10mm O.D

  Female: L17.90mm x 2.10 I.D.



• Accessories:

  Female Housing 2 Way: JD319 (Suits JD163305)

  Male Housing 2 Way: JD318 (Suits JD163304)





  Recommended Crimping Tools:

  JD61/1

  JD62/1

  IWS-1424A
