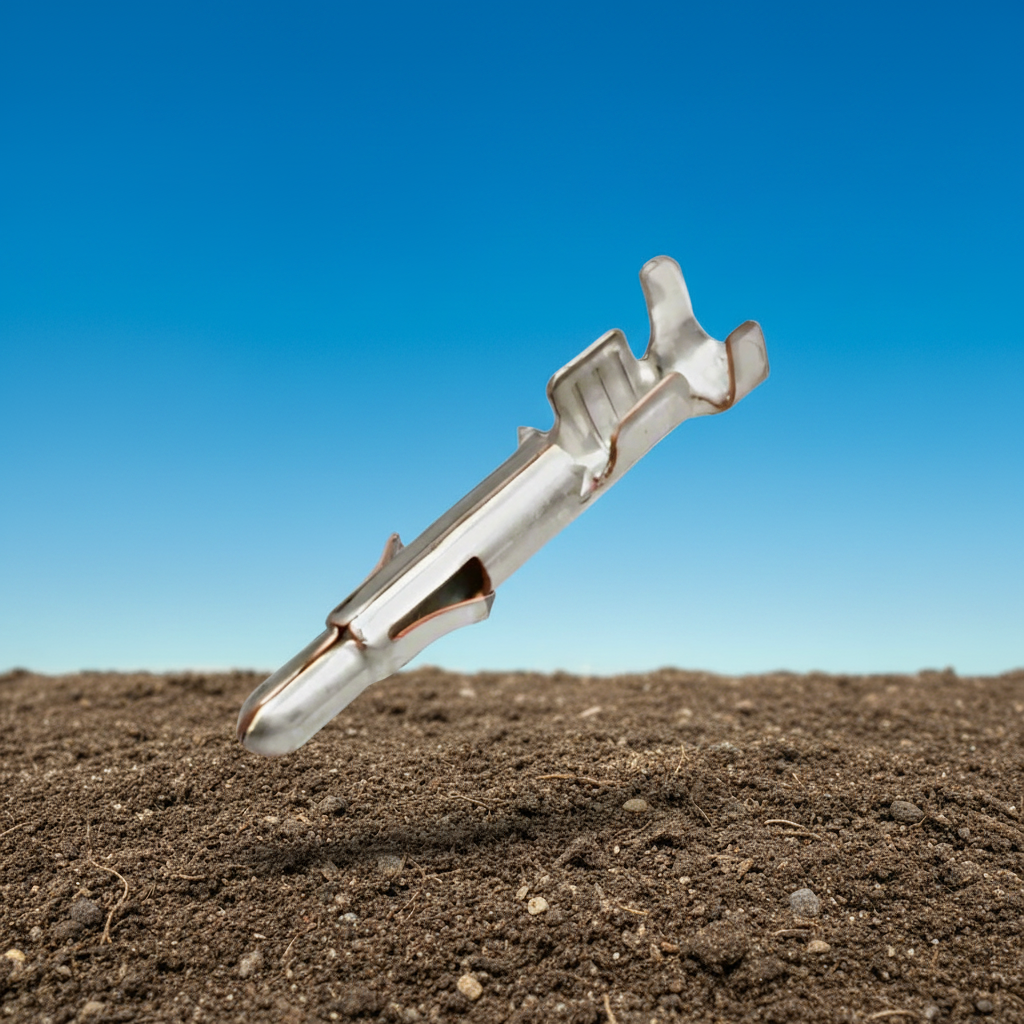

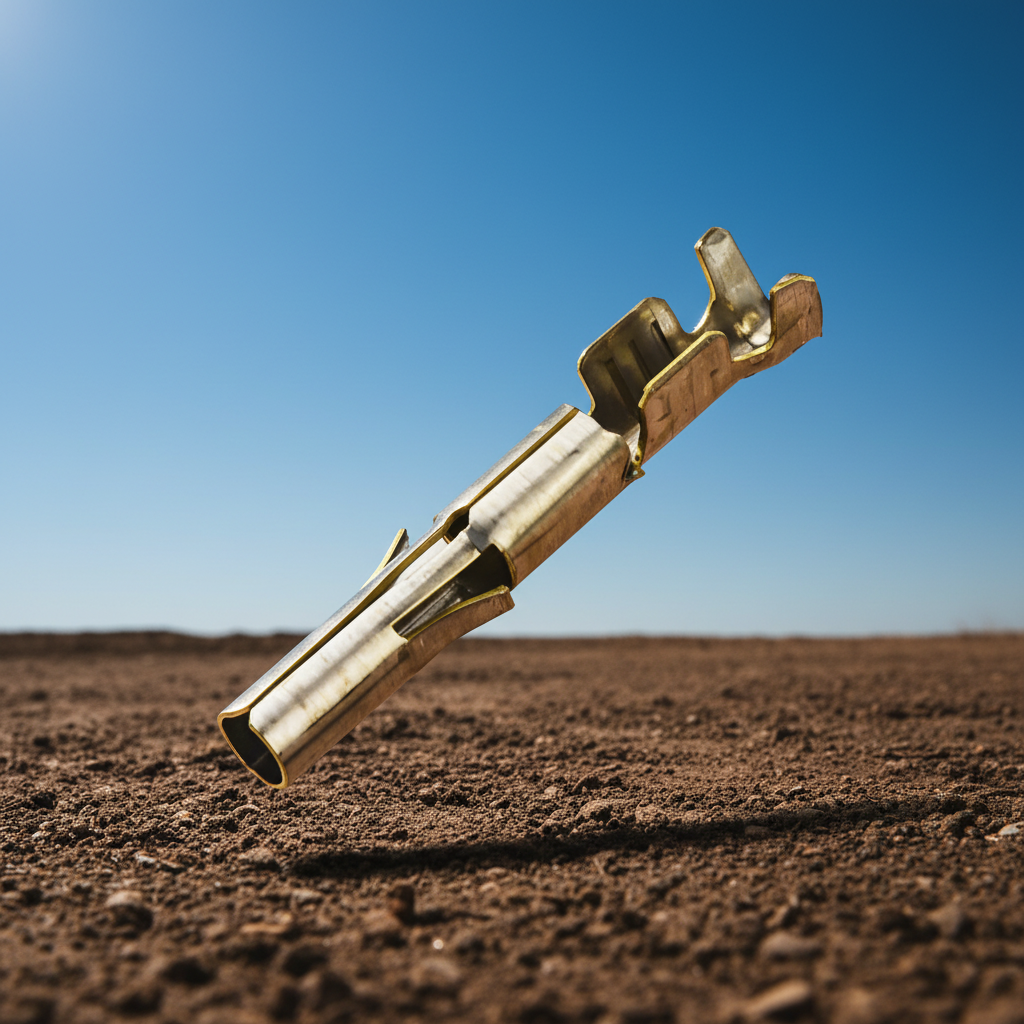

AMP MATE-N-LOCK Terminals - 2.1mm

Universal "MATE-N-LOK" connector 2.1mm terminals

General wire to wire connections using AMP "MATE-N-LOCK" connectors

Jay-Dee Part #:  AMP350689 (Female) or AMP350690 (Male)

Pack Qty: 25 (Ordered as 1)

Brand: AMP

Voltage Rating: 600VAC/VDC

Current Rating: 19 amps

Operating Temperature: -55°C to 105°C

Contact Material: Brass

Contact Plating: Pre-Tin

Wire Size: 18-24 AWG

Dimensions:

Male: L20.07mm x 2.06mm O.D

Female: L19.30mm x 2.06mm I.D.

Recommended Crimping Tools:

JD61

JD62

IWS-1424A
