JD371

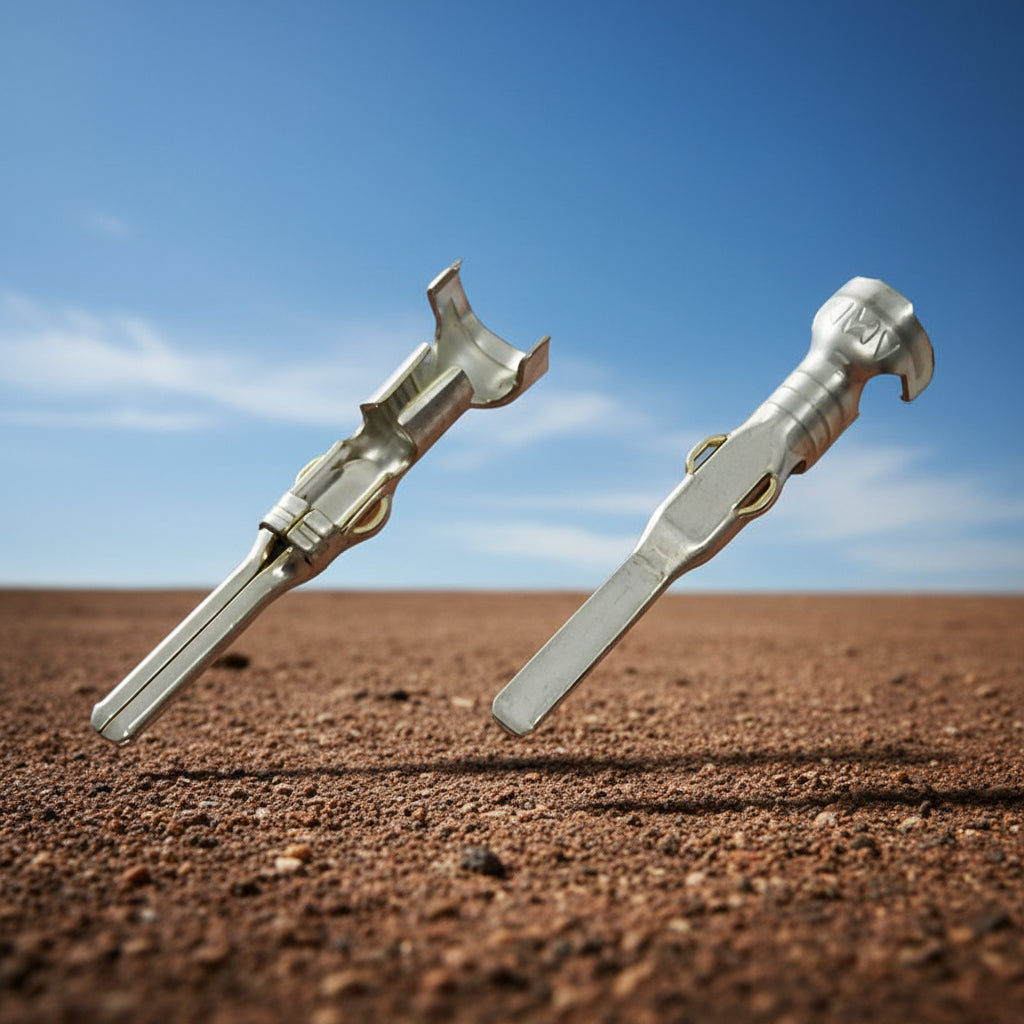

AMP Econoseal J MKII Male Terminal


Description





Econoseal J MKII 070 Series Male Terminal

Part #:JD371

AMP #: 173706-1

Pack Size: Multiples of 10



Specifications



Voltage Rating: 250VAC/VDC

Operating Temperature: -30°C to 105°C

Contact Material: Brass

Contact Plating: Tin

Wire Size: 16-20 AWG

Dimensions: L20.9mm x W4.50mm x  H3.60mm



Applications



General wire to wire connections using AMP "Econoseal J MKII 070 Series" connectors



Mating Part



Part #: JD370

AMP #: 173707-1



Accessories



Seal: 070S
