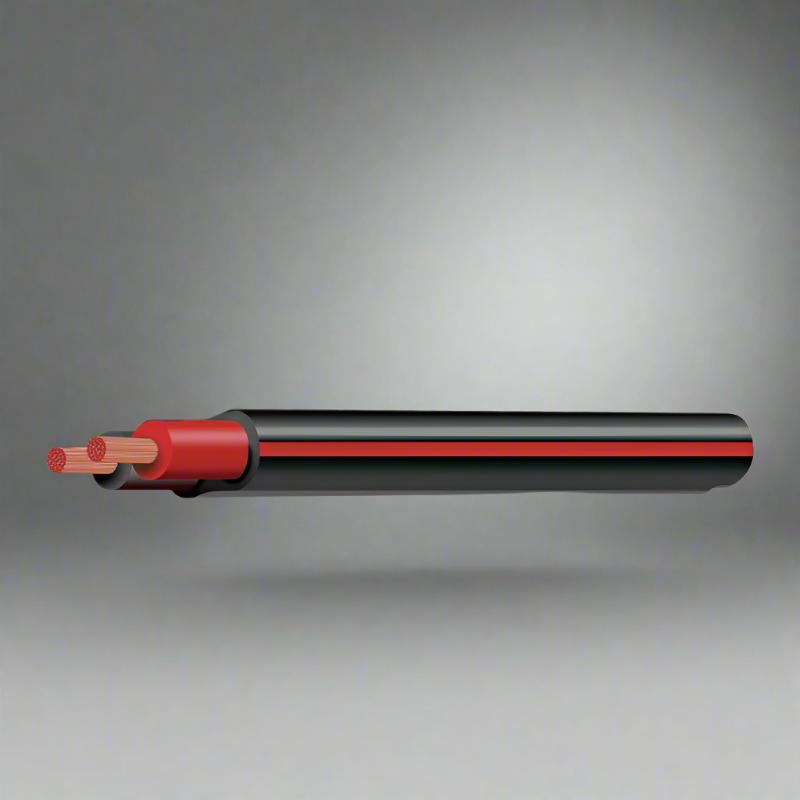

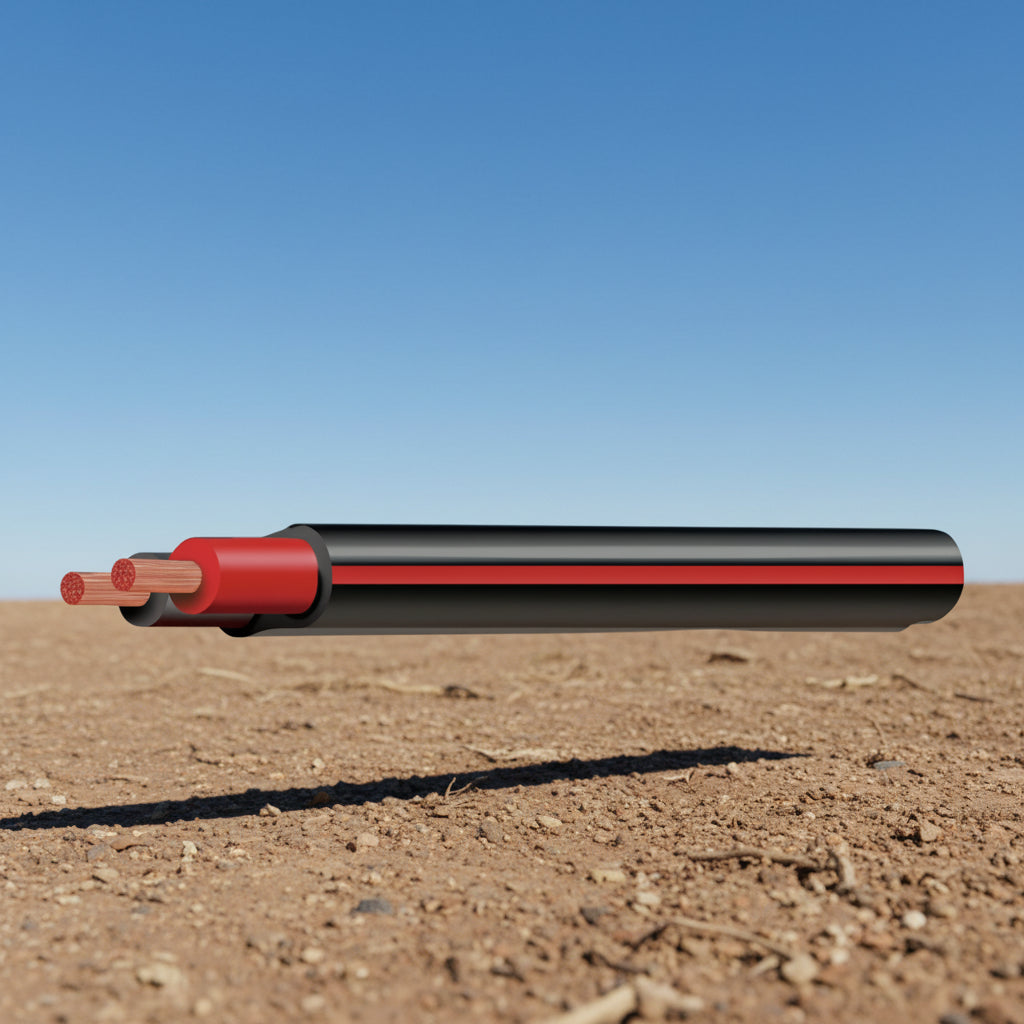

8 B&S Twin Sheath Battery Cable

Genuine Australian made TYCAB Twin 8 B&S battery and starter cable, ideal for use in dual battery systems, caravans or any other auxiliary power application up to 59.2 amp*

• Product Info
• Specifications
• Derating Factors
• Applications
• Size Guide

• Part # Prefix: C2TS-8

  Sheath Colours: Black, Red

  Lengths: Cut to length by the metre up to 30m and also available in 50m reels.



   * Refer Specifications and derating factors



• AMP Rating at  30°C:59.2 amp (JASO D609 derating factors apply)

  Tycab Code: AWC296032

  Nearest AWG: 8

  Strand #/Size: 96/0.32

  Nominal Area: 7.71mm²

  Insulation Thickness: 0.9mm

  Sheath Thickness: 0.8mm

  Electrical Resistance at 20°C: 2.4ohm/km

  Nominal O.D.: 7.1mm×12.5mm

  Mass (kg/100m): 22

  Conductor: OXYGEN FREE Plain Copper Wire to AS/NZS 1125

  Insulation: V90 degrees Celsius PVC to AS/NZS 3808



• Derating Factors for Ambient Temperatures °C per JASO D609




  As the ambient temperature increases, the current capacity of the cable decreases as per the following chart.




  Ambiebt Temperature °C = Derating Factor for Twin 8 B&S




  • 30°C = 100% capacity (59.2amp)

  • 40°C = 90% capacity (53.3amp)

  • 50°C = 76% capacity (45amp)

  • 60°C = 60% capacity (35.5amp)

  • 70°C = 45% capacity (26.6amp)

• • Battery and starter systems

  • Dual battery systems

  • Caravans and 4WD's

  • Auxiliary power applications

  • Charging systems



• Download Sizing Guide















  Voltage Drop for Twin 8 B&S Cable:

  To calculate the voltage drop of Twin 8 B&S copper cable, use the following formula:



  Voltage Drop = Length x Current x 0.017
                                        Area (7.71)



  Length = Total length of cable in metres.

  Current = Current draw (amps) through the cable.

  Area = Cross sectional area of the copper (in this case 7.71mm²)



  Notes:

  • Formula only applies to copper at 25°C, voltage drop increases with both ambient and cable temperature, at approx 0.4% per °C.

  • 0.017 - This multiplication factor only applies to copper



  Example for Twin 8 B&S:

  How much voltage drop over 10m of Twin 8 B&S with a current draw of 59A?



  • 10m x 59A x 0.017 = 10.03



  Divide this by 7.71 (cross sectional area of 8 B&S - mm²)



  • 10.03/7.71 = 1.3V



  You will have a drop of approximatley 1.3 Volts over the 10m length
