Description

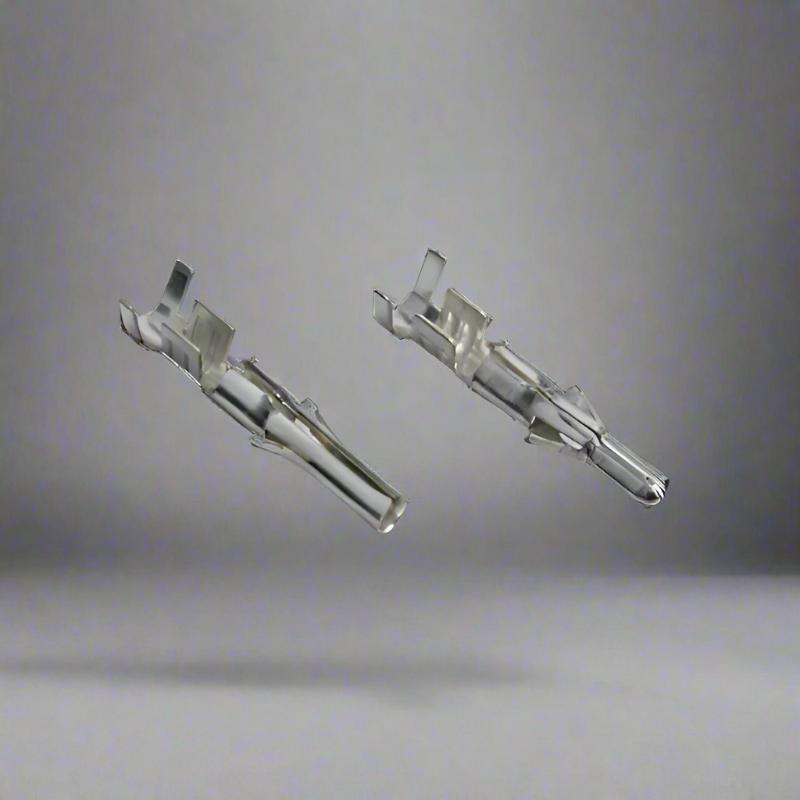

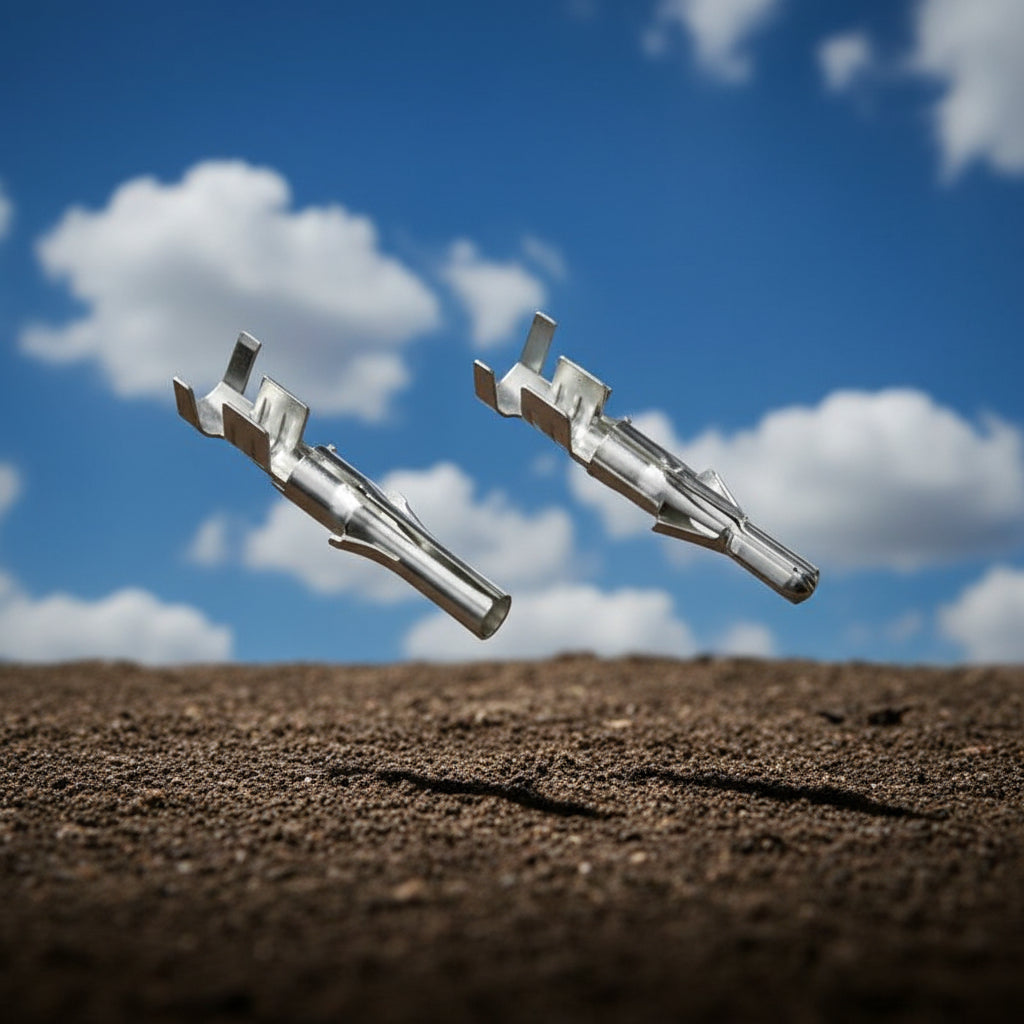

6007 Series Terminals

Polarised to ensure correct mating, a positive locking latch also automatically engages at mating, and the option exists for in line or hand fitted panel mounted installation  High reliability 2mm O.D. crimp contacts, are easily snapped into the housings by hand, covering a wide wire range up to 2.0mm².

These connectors are commonly used in battery charger connections.

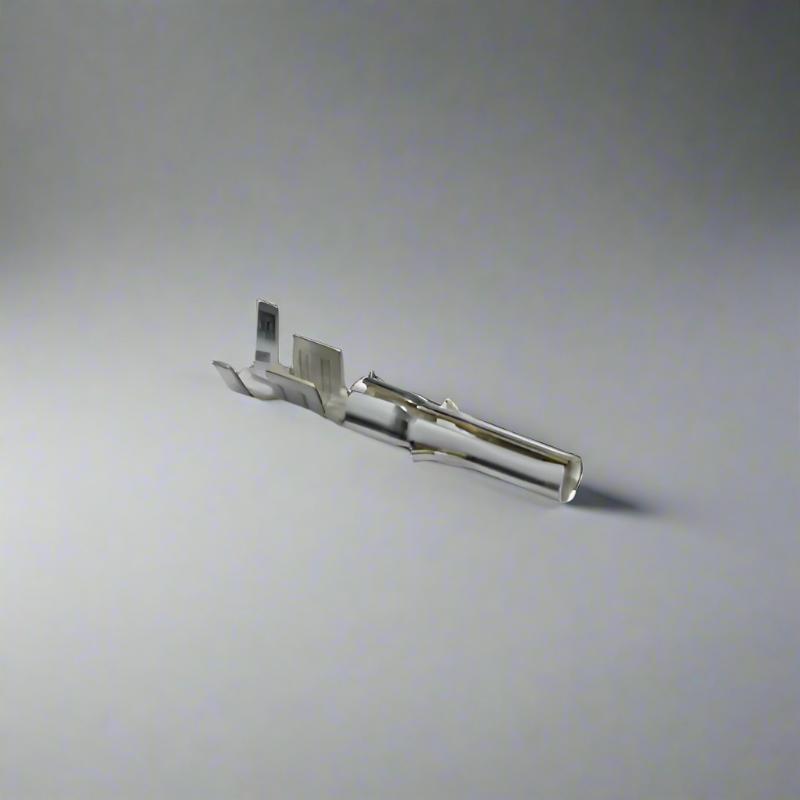

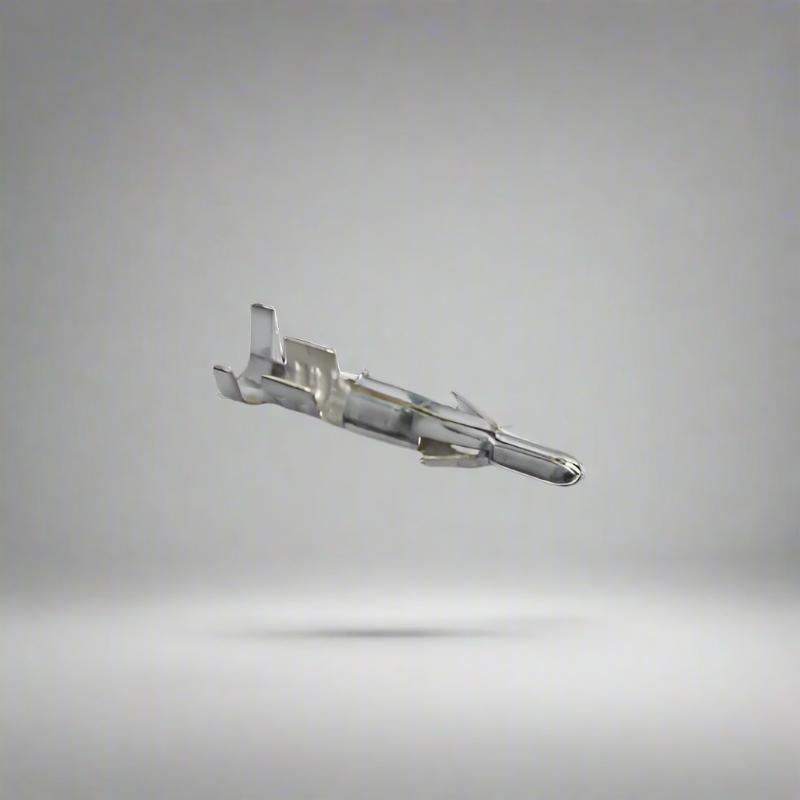

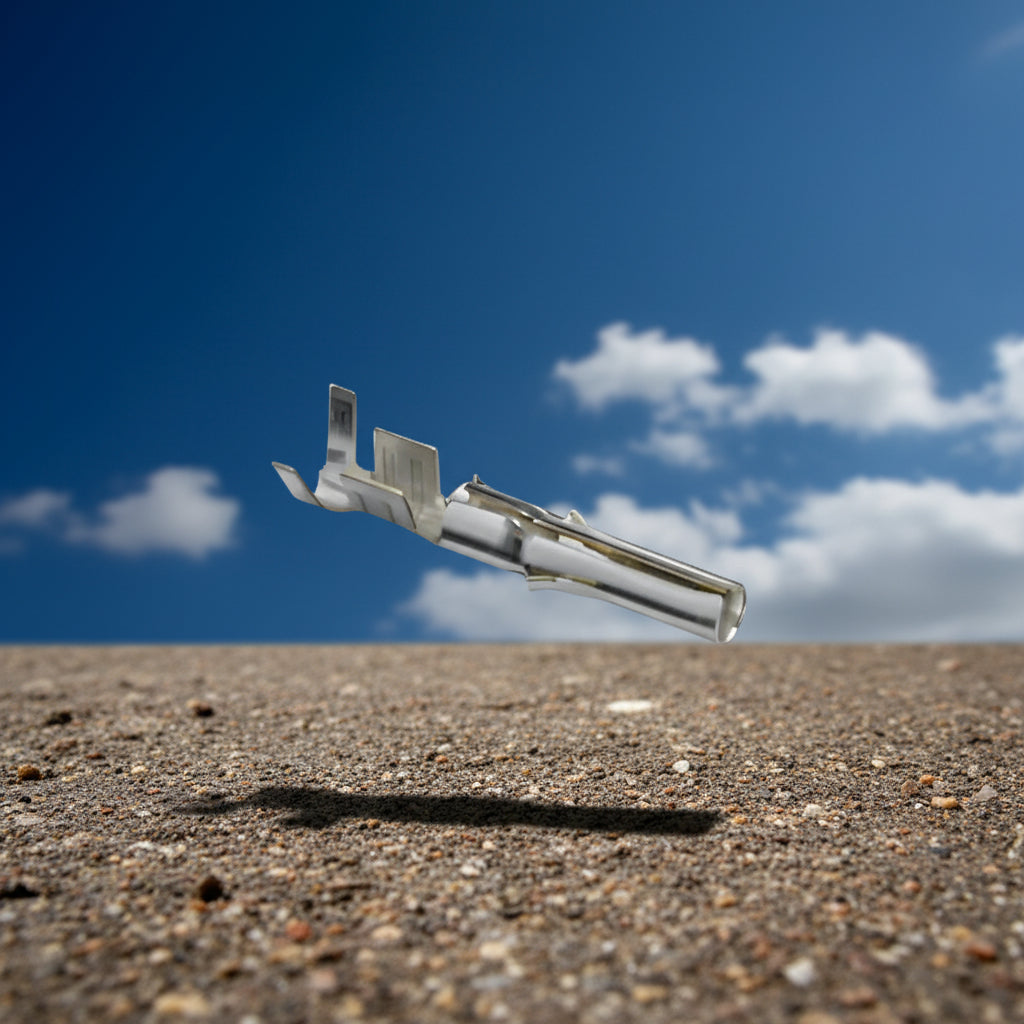

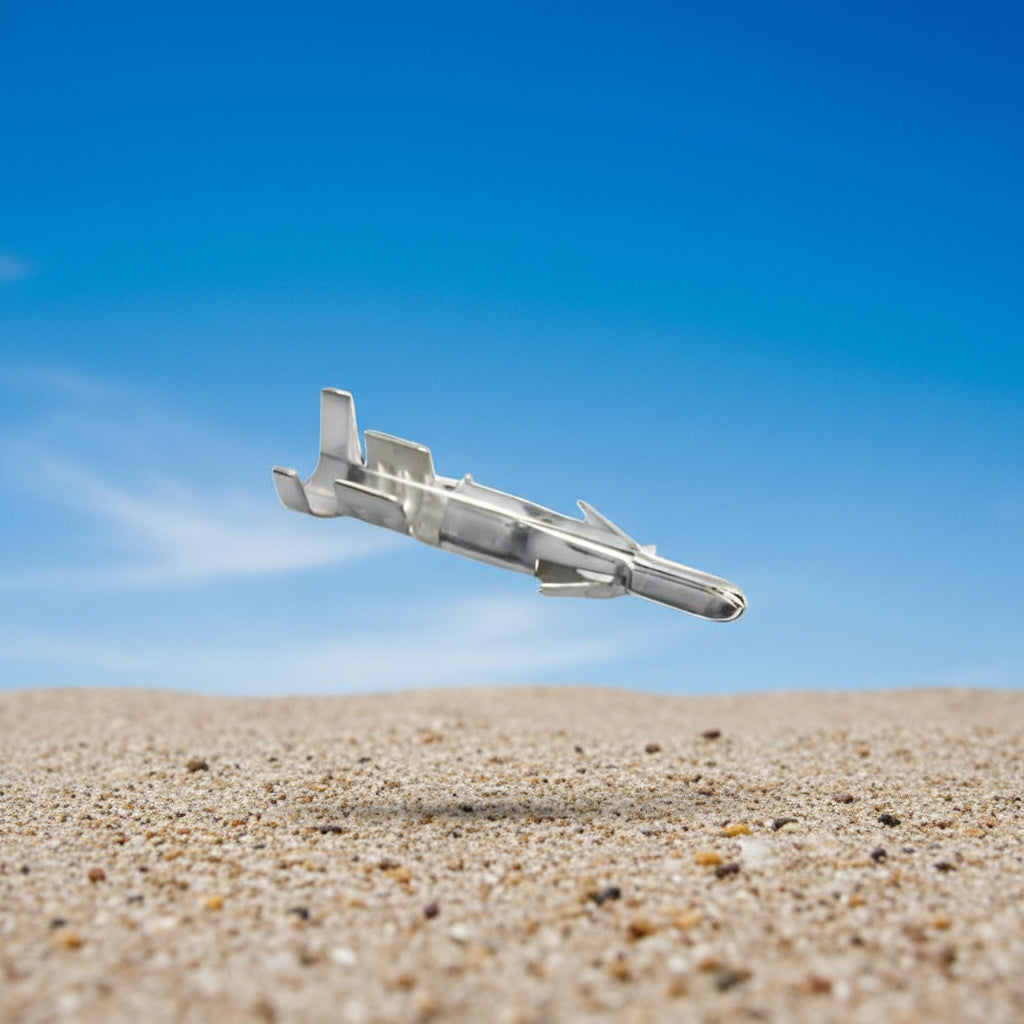

Jay-Dee Part #:  6007MT (Male) or 6007FT(Female)

Pack Qty: 25

Brand: Carroll

Voltage Rating: 300V AC/DC

Current Rating: 15A

Operating Temperature: -25°C to 105°C

Wire Size: Up to 2.00mm²

Contact Resistance:10 ohms

Dimensions:

Male: L20.70mm

Female: L20.6mm

Accessories:

Female Housing 2 Way: 6007-PH02 (Suits LLM-61T-2.0)

Male Housing 2 Way: 6007-RH02 (Suits LLF-61T-2.0)

Female Housing 3 Way: 6007-PH03 (Suits LLM-61T-2.0)

Male Housing 3 Way: 6007-RH03 (Suits LLF-61T-2.0)



Recommended Crimping Tools:

JD61

JD62

IWS-1424AB
