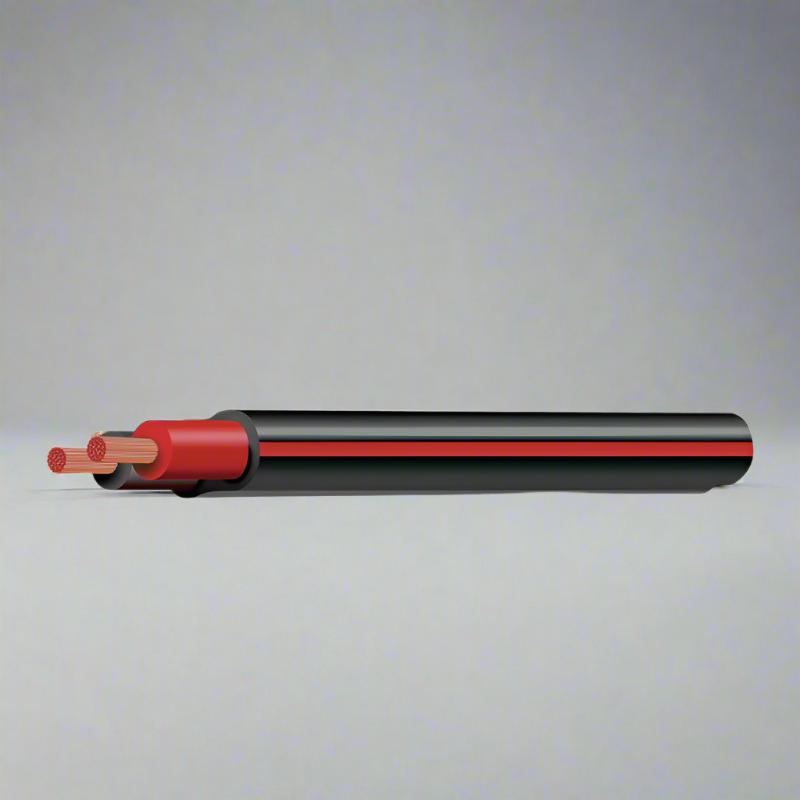

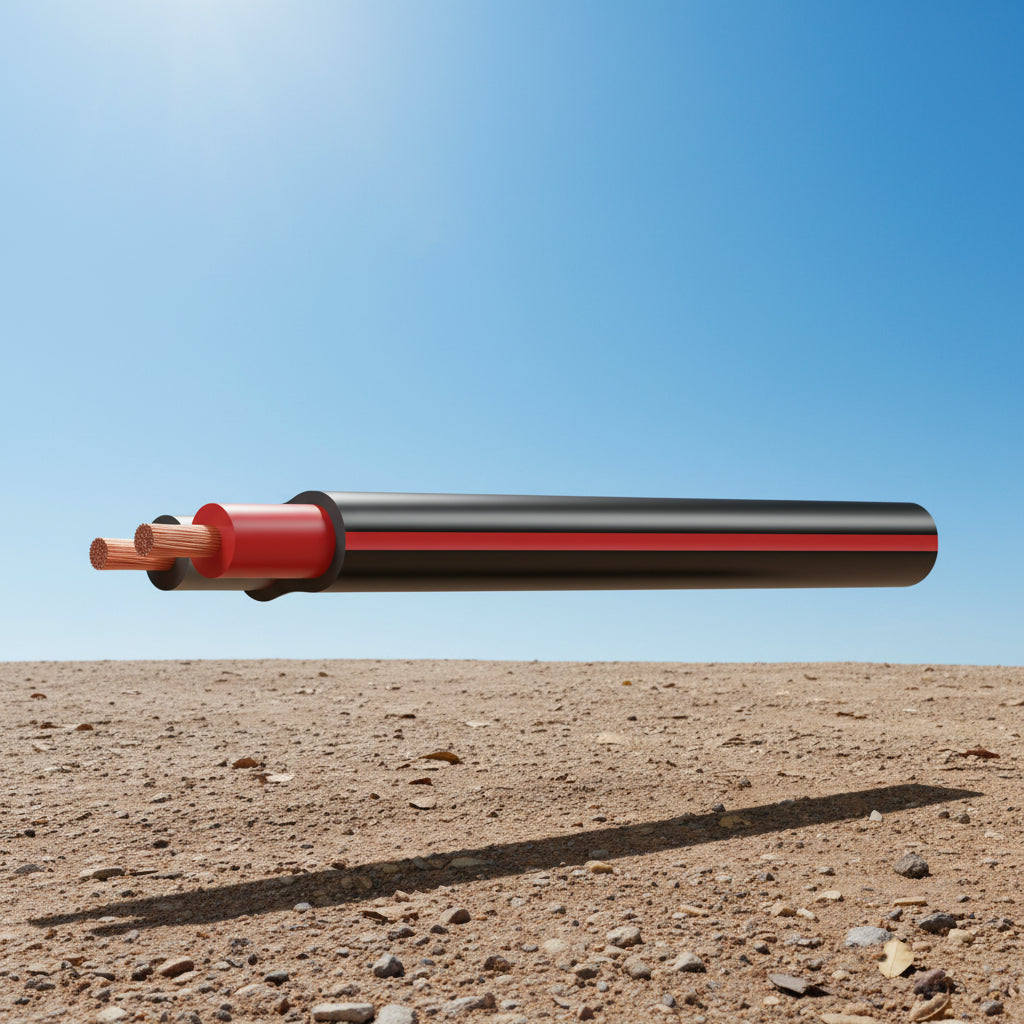

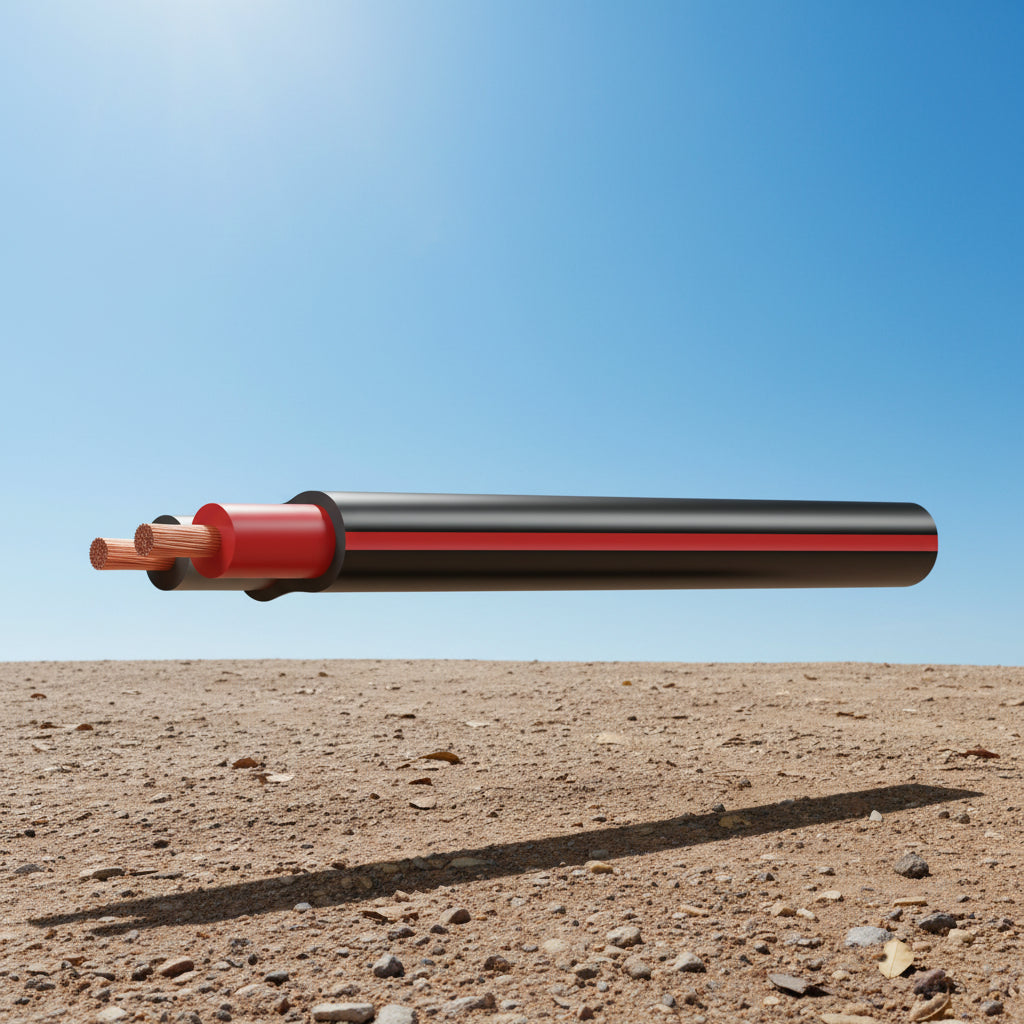

4 B&S Twin Sheath Battery Cable

Genuine Australian made TYCAB 4 B&S battery and starter cable, ideal for use in dual battery systems, caravans or any other auxiliary power application up to 108 amp*

• Product Info
• Specifications
• Derating Factors
• Applications
• Size Guide

• Part # Prefix: C2TS-4

  Sheath Colours: Black, Red

  Lengths: Cut to length by the metre up to 30m.



   * Refer Specifications and derating factors



• AMP Rating at  30°C:108 amp (JASO D609 derating factors apply)

  Tycab Code: AWC296032

  Nearest AWG: 4

  Strand #/Size: 252/0.32

  Nominal Area: 20.26mm²

  Insulation Thickness: 1.1mm

  Sheath Thickness: 1.0mm

  Electrical Resistance at 20°C: 0.9ohm/km

  Nominal O.D.: 10.3mm ×18.6mm

  Mass (kg/100m): 52.2

  Conductor: OXYGEN FREE Plain Copper Wire to AS/NZS 1125

  Insulation: V90 degrees Celsius PVC to AS/NZS 3808



• Derating Factors for Ambient Temperatures °C per JASO D609




  As the ambient temperature increases, the current capacity of the cable decreases as per the following chart.




  Ambiebt Temperature °C = Derating Factor for Twin 4 B&S




  • 30°C = 100% capacity (108amp)

  • 40°C = 90% capacity (97.20amp)

  • 50°C = 76% capacity (82.08amp)

  • 60°C = 60% capacity (64.80amp)

  • 70°C = 45% capacity (48.60amp)

• • Battery and starter systems

  • Dual battery systems

  • Caravans and 4WD's

  • Auxiliary power applications

  • Charging systems



• Download Sizing Guide















  Voltage Drop for Twin 4 B&S Cable:

  To calculate the voltage drop of Twin 4 B&S copper cable, use the following formula:



  Voltage Drop = Length x Current x 0.017
                                        Area (20.26)



  Length = Total length of cable in metres.

  Current = Current draw (amps) through the cable.

  Area = Cross sectional area of the copper (in this case 20.26mm²)



  Notes:

  • Formula only applies to copper at 25°C, voltage drop increases with both ambient and cable temperature, at approx 0.4% per °C.

  • 0.017 - This multiplication factor only applies to copper



  Example for Twin 4 B&S:

  How much voltage drop over 10m of Twin 4 B&S with a current draw of 108A?



  • 10m x 108A x 0.017 = 18.36



  Divide this by 20.26 (cross sectional area of 4 B&S - mm²)



  • 18.36/20.26 = 0.9062V



  You will have a drop of approximatley 0.91 Volts over the 10m length
