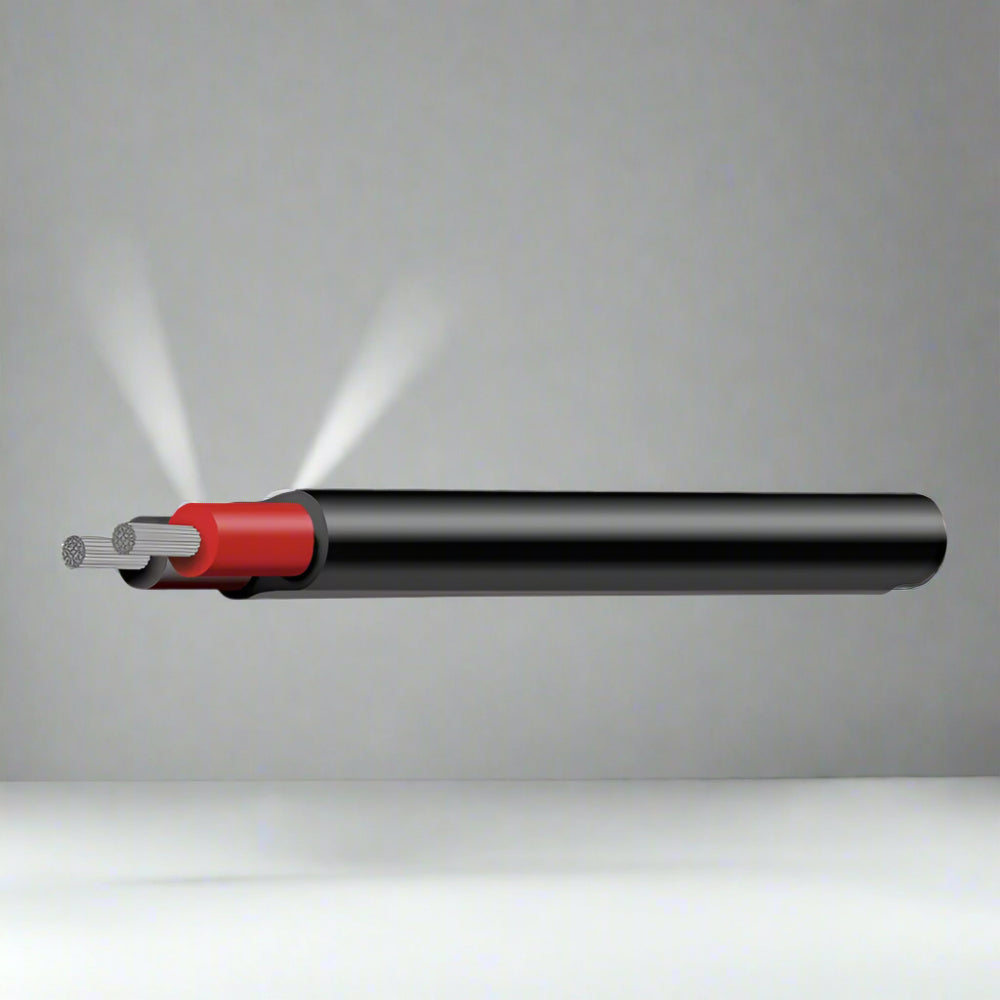

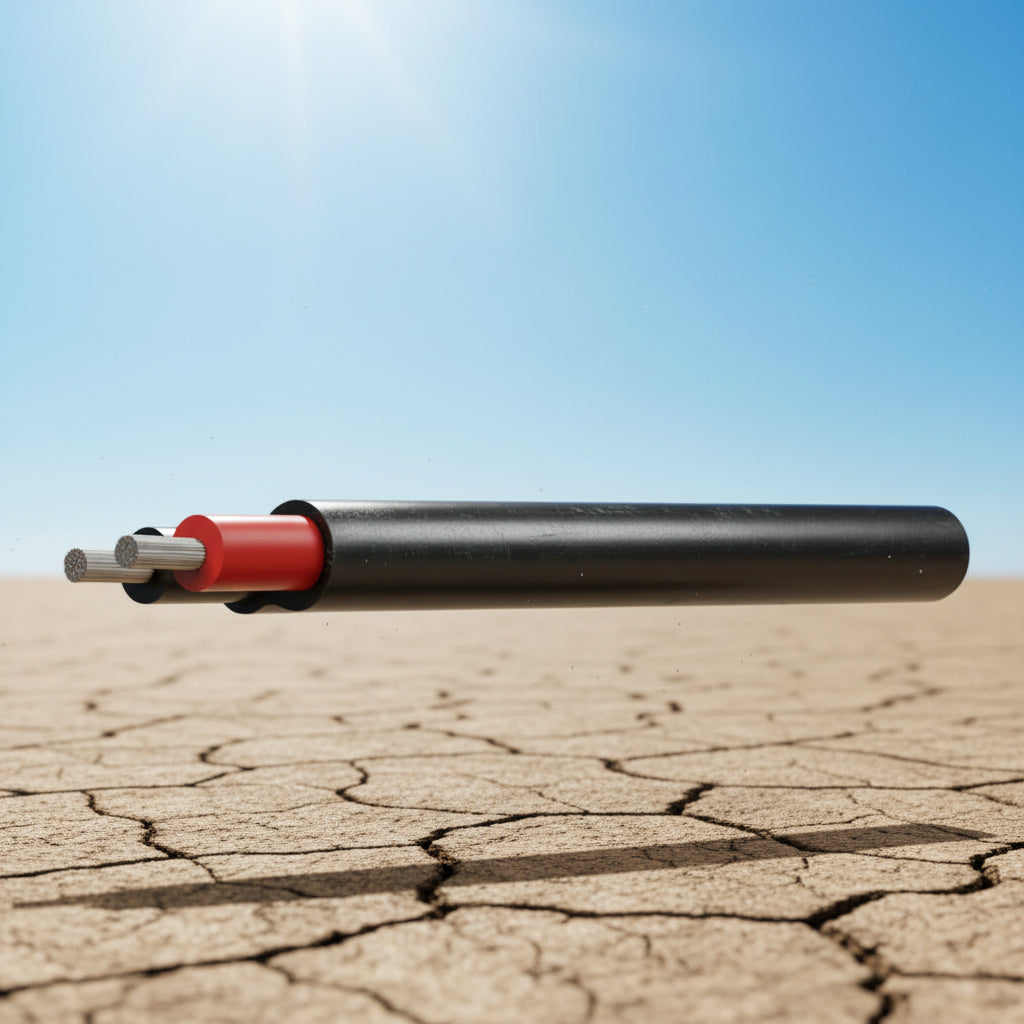

2 B&S Twin Sheath Tinned Battery Cable

Genuine Australian made TYCAB Twin 2 B&S Tinned battery and starter cable, ideal for use in dual battery systems, caravans or any other auxiliary power application up to 150 amp*

• Product Info
• Specifications
• Derating Factors
• Applications
• Size Guide

• Part # Prefix: C2TS-2

  Sheath Colours: Black, Red

  Lengths: Cut to length by the metre up to 30m.



   * Refer Specifications and derating factors



• AMP Rating at  30°C:150 amp (JASO D609 derating factors apply)

  Tycab Code: MWS2399032

  Nearest AWG: 2

  Strand #/Size: 399/0.32

  Nominal Area: 32.00mm²

  Insulation Thickness: 1.7mm

  Sheath Thickness: 0.96mm

  Electrical Resistance at 20°C: 0.61 ohm/km

  Nominal O.D.: 13mm×24mm

  Mass (kg/100m): 83

  Conductor: OXYGEN FREE Tinned Copper Wire to AS/NZS 1125

  Insulation: V90 degrees Celsius PVC to AS/NZS 3808



• Derating Factors for Ambient Temperatures °C per JASO D609




  As the ambient temperature increases, the current capacity of the cable decreases as per the following chart.




  Ambiebt Temperature °C = Derating Factor for Twin 2 B&S




  • 30°C = 100% capacity (150amp)

  • 40°C = 90% capacity (135amp)

  • 50°C = 76% capacity (114amp)

  • 60°C = 60% capacity (90amp)

  • 70°C = 45% capacity (67.5amp)

• • Battery and starter systems

  • Dual battery systems

  • Caravans and 4WD's

  • Auxiliary power applications

  • Charging systems



• Download Sizing Guide















  Voltage Drop for Twin 2 B&S Cable:

  To calculate the voltage drop of Twin 2 B&S copper cable, use the following formula:



  Voltage Drop = Length x Current x 0.017
                                        Area (32.07)



  Length = Total length of cable in metres.

  Current = Current draw (amps) through the cable.

  Area = Cross sectional area of the copper (in this case 32.07mm²)



  Notes:

  • Formula only applies to copper at 25°C, voltage drop increases with both ambient and cable temperature, at approx 0.4% per °C.

  • 0.017 - This multiplication factor only applies to copper



  Example for Twin 2 B&S:

  How much voltage drop over 10m of Twin 8 B&S with a current draw of 150A?



  • 10m x 150A x 0.017 = 25.50



  Divide this by 32.07 (cross sectional area of 2 B&S - mm²)



  • 25.50/32.07 = 0.795V



  You will have a drop of approximatley .08 Volts over the 10m length
