PIC100L

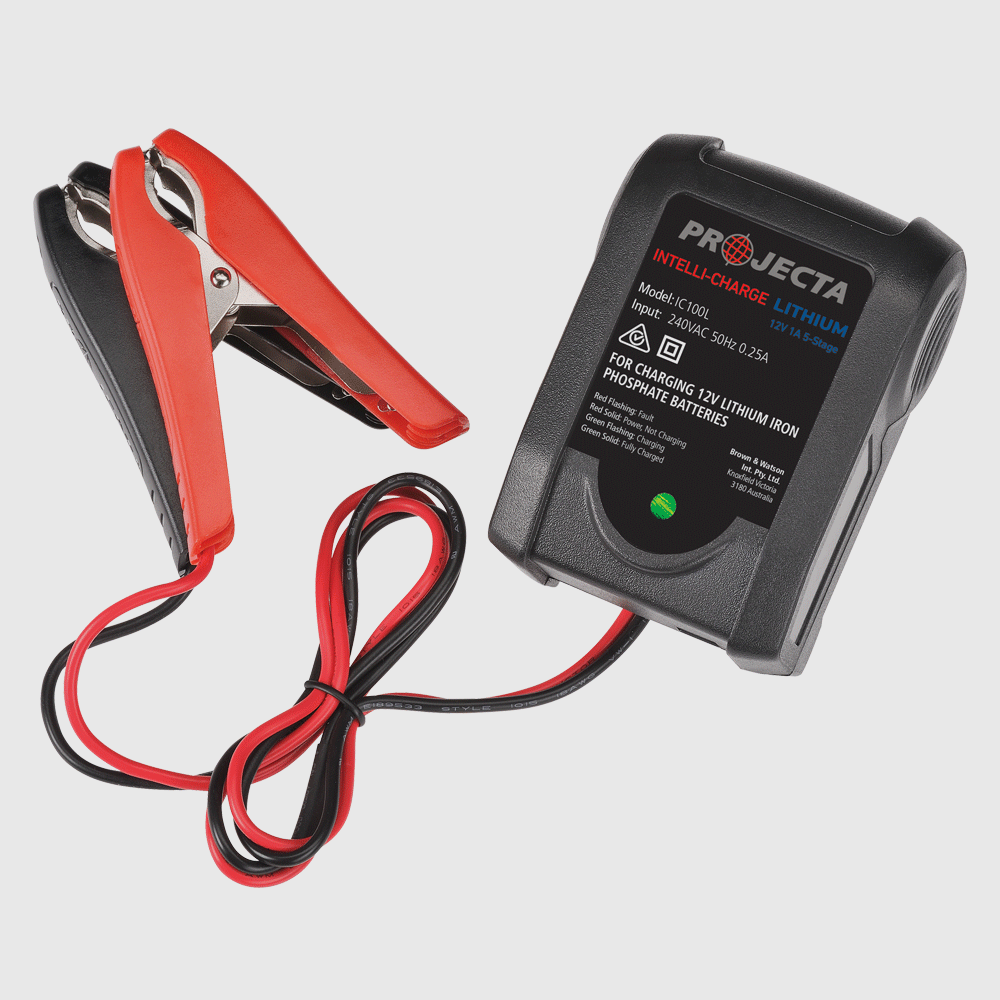

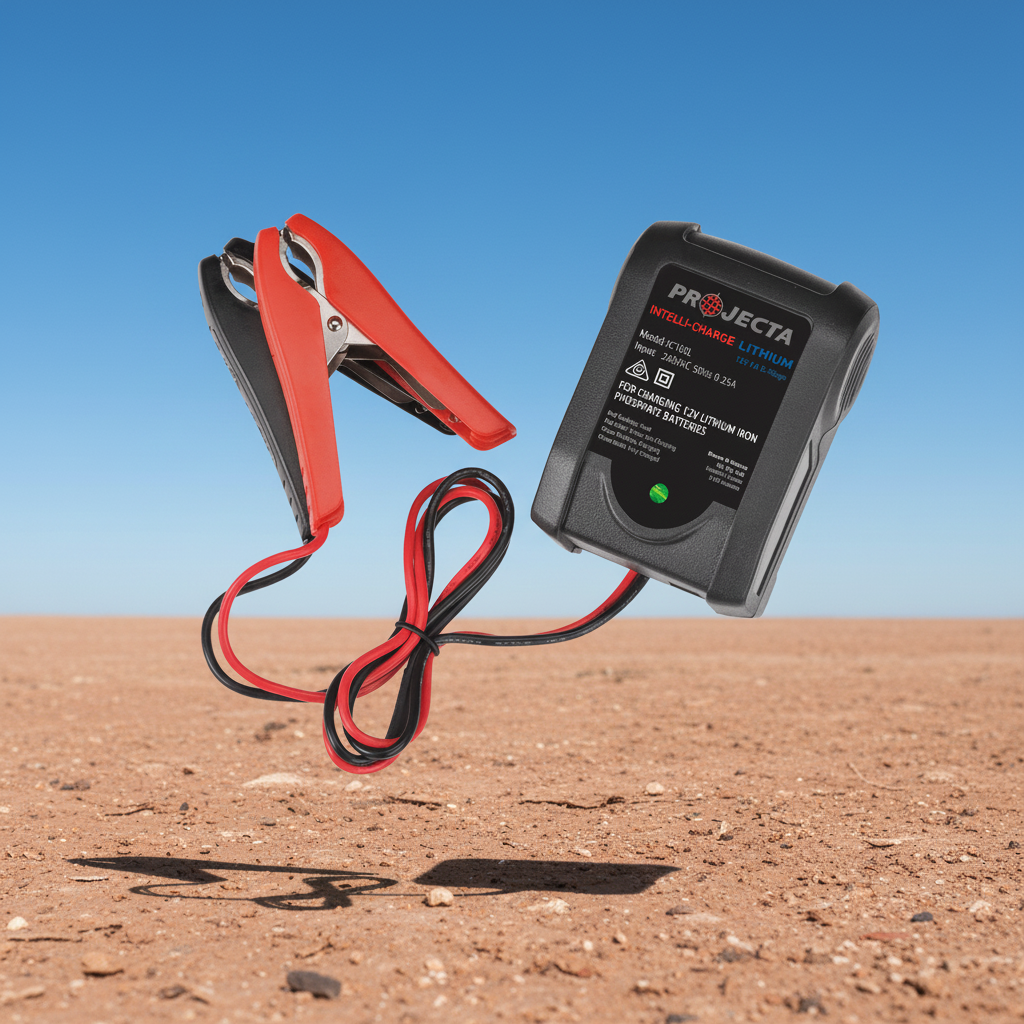

12V AUTOMATIC 1 AMP 5 STAGE LITHIUM BATTERY CHARGER

2 items left

12V AUTOMATIC 1 AMP 5 STAGE LITHIUM BATTERY CHARGER

The ideal charger for maintaining infrequently used vehicles such as motorcycles, jet skis and ride on mowers.



Comprehensive Kit -Supplied battery clamps and a fused vehicle harness provide charging options

Fused Wiring Harness - 3m harness allows permanent connection and features polarity protection

3 Pin Electrical Plug -Plugs directly into standard electrical outlet

Safer Charging -Spark free and polarity protected

L.E.D Indicator -Displays charge status


SPECIFICATIONS

PART NO

IC100L

TYPE

5 Stage Automatic

INPUT

240VAC, 50Hz, 20W

OUTPUT

12V

OUTPUT CURRENT

1A

MINIMUM START VOLTAGE

2.0V

BACK DRAIN

1mA

APPROVALS

Electrical Safety, EMC

CHARGE VOLTAGE

14.5V

FLOAT

13.5V



L.E.D. CHARGE INDICATION

RED LIGHT ON

Power on, not charging

RED LIGHT FLASHING

Fault

GREEN LIGHT FLASHING

Charging

GREEN LIGHT ON

Fully charged and maintaining,
no need to turn the charger off



BATTERY CHARGE TIMES

IC100L

VOLTAGE

BATTERY SIZE

CHARGE TIME

AUTOMOTIVE

12V

100–320CCA

2–10hrs

DEEP CYCLE

12V

2–10Ah

2–10 hrs
