Sumitomo 090 MT/HW Automotive Terminals

Type

Sumitomo 090 MT/HW Automotive Terminals

Automotive terminal/contact used in 090 MT/HW [2.30mm] series Sumitomo Wiring Systems automotive harnesses, sealed, connectors and plugs. Commonly used in Japanese vehicles.

Tab Size: 2.3mm (090)

Male Dimensions: L23.5mm x W2.3mm x H2.0mm

Female Dimensions: L16.0mm x W3.0mm x H2.5mm

Applicable wire size: 0.3 - 1.25mm2

Cable overall diameter (mm): 1.4 - 2.9

Materials: Heat resistant copper alloy

Surface Treatment: Tin Plated

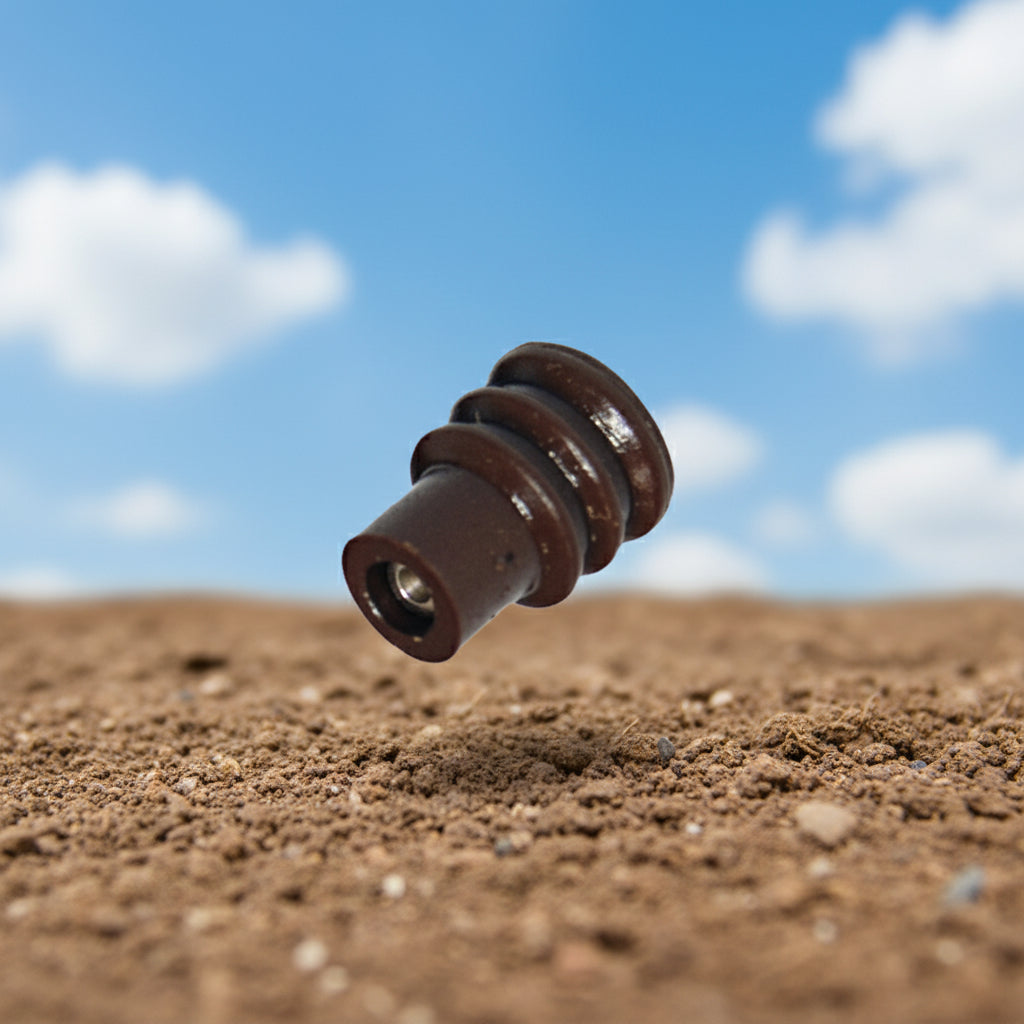

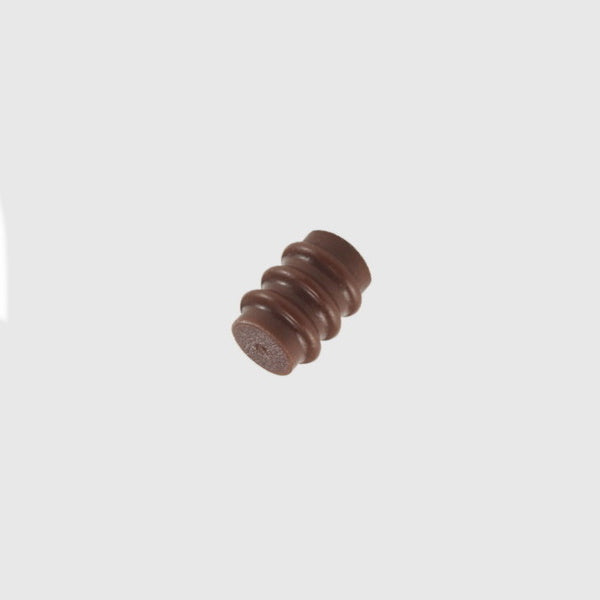

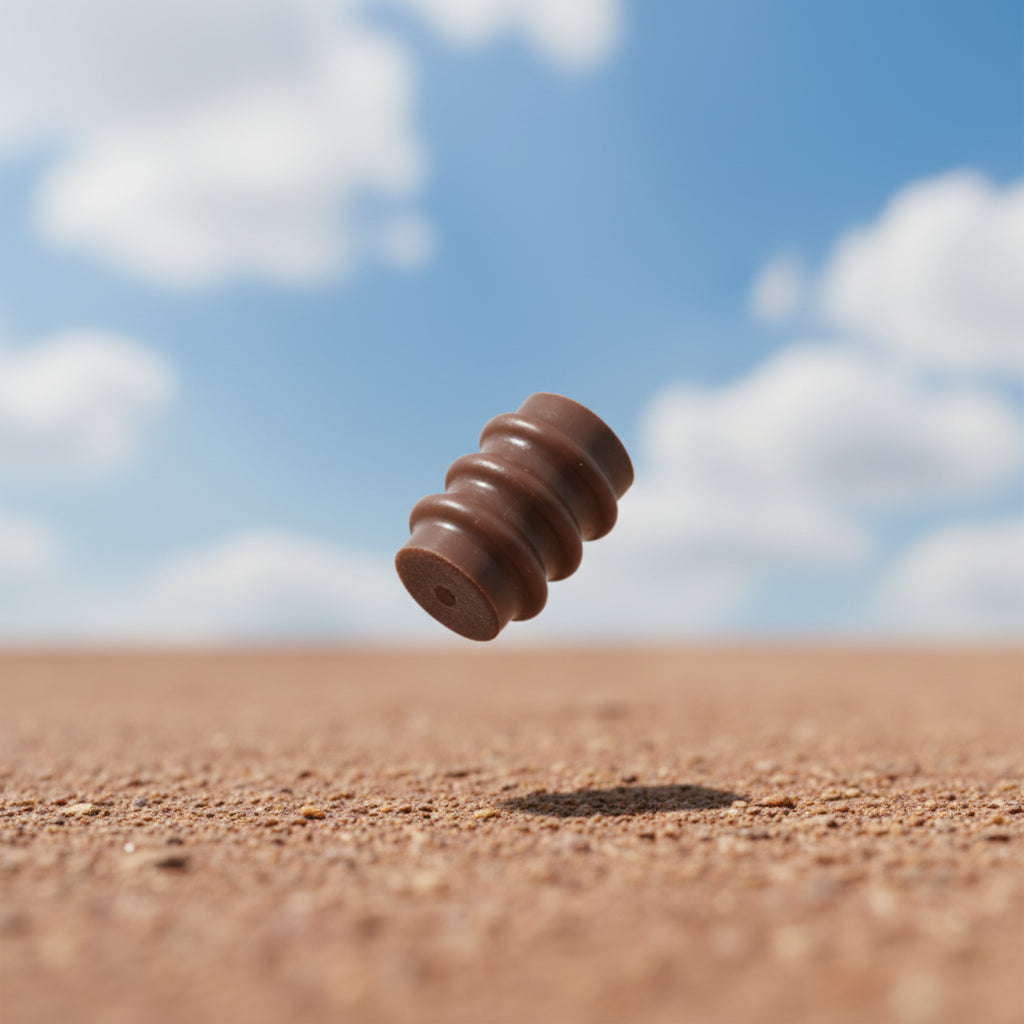

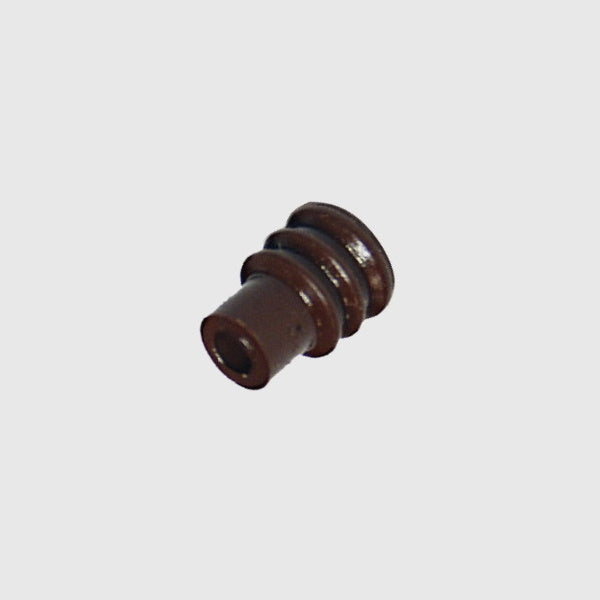

Used with Silicon seals



Pack Size: Multiples of 25



If you are purchasing this terminal, it would be greatly appreciated if you could take some time to fill out the product review below and let us know what make, model and which plug it was used on your vehicle. As you can appreciate, these terminals may be used in many and varied applications, some of which we may not be aware of. Your efforts will allow us to expand our databases and help our community find the parts they are looking for.

Thank you.
